P Series Professional Modular Video Wall Processor

Name: P Series Professional Modular Video Wall Processor
Brand: VEXWALL

Professional modular platform for 4K, IP and LED walls — up to 80 inputs and 80 outputs in up to 8 wall groups, with multi-format input/output cards, IP decoding and LED-friendly features.

Request a Quote Compare Series

VEXWALL P Series Professional Modular Video Wall Processor — product view

Video Wall Processors · P Series Professional Modular Video Wall Processor

Interface & Specs

Every port, clearly mapped

Complete interface configuration for this model — input, output, control and power. An engineer confirms the exact configuration before any quote.

Dedicated interface diagram not available for this model — port data below is the full published configuration.

Chassis

3U / 5U / 8U / 14U

Max Input

Max Output

Card types

13 IN · 8 OUT · 0 CTRL

Capability Matrix

Cards and windows, built to spec

Published values — no rounded numbers, no invented modes.

Input cards · 13

4-channel HDMI input cardHDMI 1.3, up to 1920×1080@60Hz
4-channel DVI input cardDVI-D, up to 1920×1080@60Hz
4-channel HDMI input card (embedded audio)HDMI 1.3, synchronized A/V transmission
4-channel VGA input cardDB-15M analog, up to 1920×1080@60Hz
1-channel 4K input card (4K30)HDMI 1.4 / DP 1.2, up to 3840×2160@30Hz
2-channel 4K input card (4K30)2×HDMI 1.4 / DP 1.2, up to 3840×2160@30Hz
1-channel 4K input card (4K60)Up to 3840×2160@60Hz, 4K output
8-channel CVBS input card8×CVBS, PAL/NTSC
16-channel CVBS input card16×CVBS, PAL/NTSC
4-channel SDI input card4×SDI (BNC female), up to 1080p60, SDI loop-out
IP decode input card4×4K/16×1080P/32×720P/64×D1, H.264/H.265, 4 channels per card, 1/4/9/16 split
4-channel HDBaseT input card4×twisted pair, up to 1080p60, CAT6 up to 70m
4-channel fiber input card4×fiber, up to 1080p60, single-mode single-fiber up to 10km

Output cards · 8

2-channel HDMI 4K output card2×4K outputs (4 windows per port), HDMI, 4K output
4-channel HDMI output card4×HDMI 1.3, 8 shared windows per card, up to 1920×1080@60Hz
4-channel DVI-D output card4×DVI-I (digital), 8 shared windows per card, up to 1920×1080@60Hz
2-channel HDMI output card (4 windows per port)2×HDMI 1.3, 4 windows per port, up to 1920×1080@60Hz
2-channel DVI output card (4 windows per port)2×DVI-I, 4 windows per port, up to 1920×1080@60Hz
4-channel SDI output card4×SDI (BNC female), 8 shared windows per card, up to 1080p60
4-channel HDBaseT output card4×twisted pair, 8 shared windows per card, up to 1080p60, CAT6 up to 70m
4-channel fiber output card4×fiber, 8 shared windows per card, up to 1080p60, single-mode single-fiber up to 10km

Control · 0

Windows per output

—

Windows per card

—

Source note

Some source combinations are mutually exclusive — confirm with engineering.

Real Hardware

Real hardware, front and back

Actual front and rear panels of this exact model.

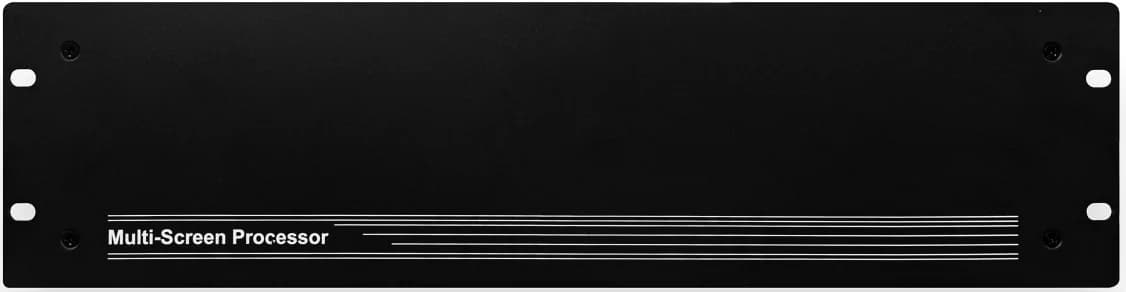

p-series hardware photo — P-series-008 — Front panel

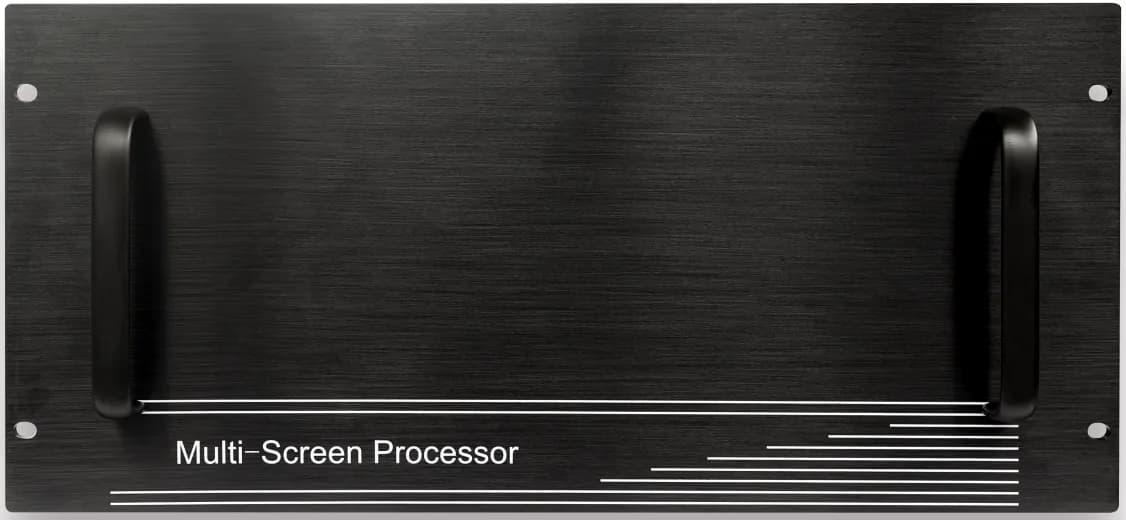

p-series hardware photo — P-series-009 — Front panel

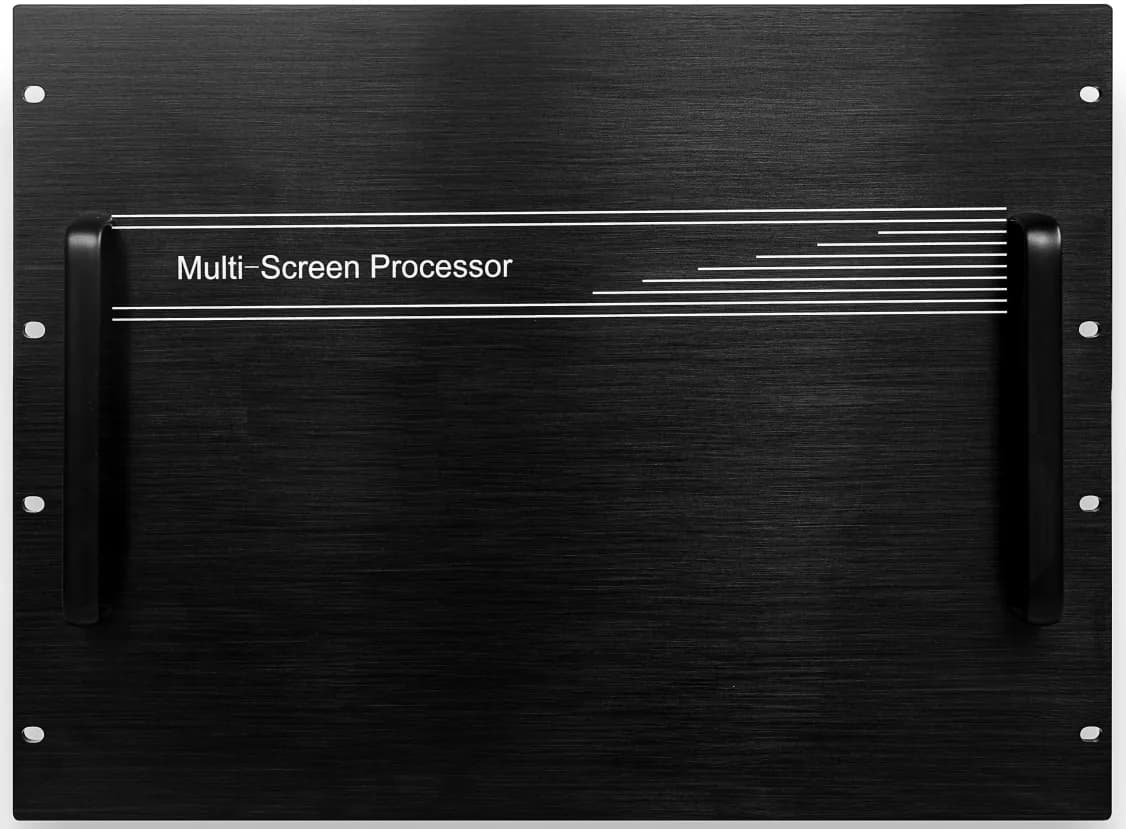

p-series hardware photo — P-series-010 — Front panel

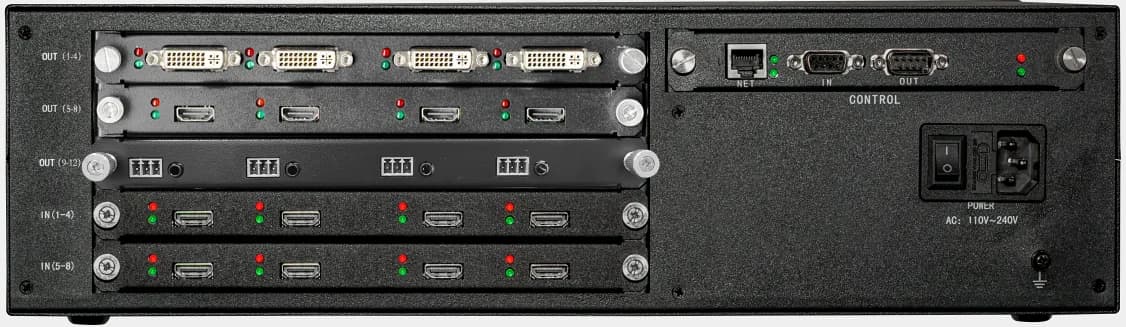

p-series hardware photo — P-series-012 — Front panel

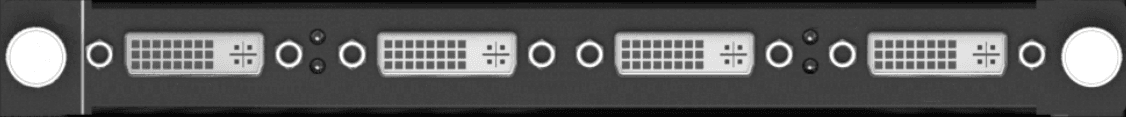

p-series board card — P-series-000 — Board card

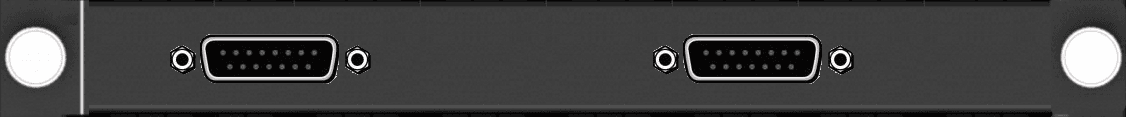

p-series board card — P-series-001 — Board card

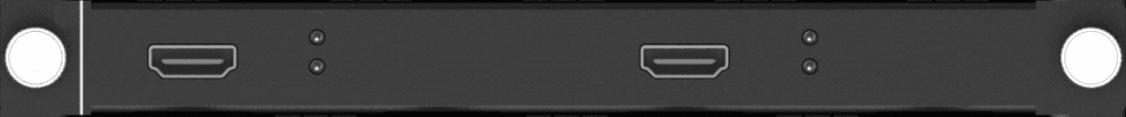

p-series board card — P-series-002 — Board card

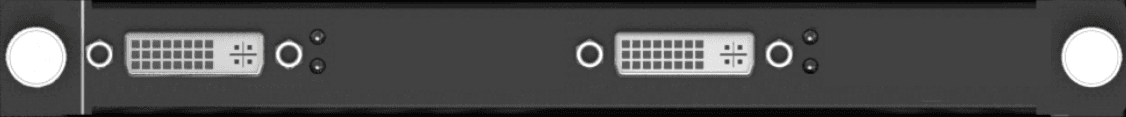

p-series board card — P-series-003 — Board card

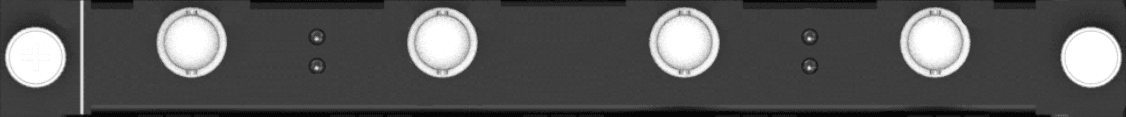

p-series board card — P-series-004 — Board card

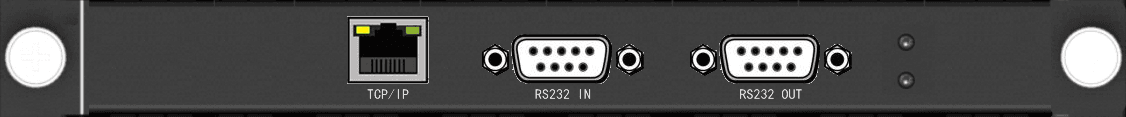

p-series board card — P-series-005 — Board card

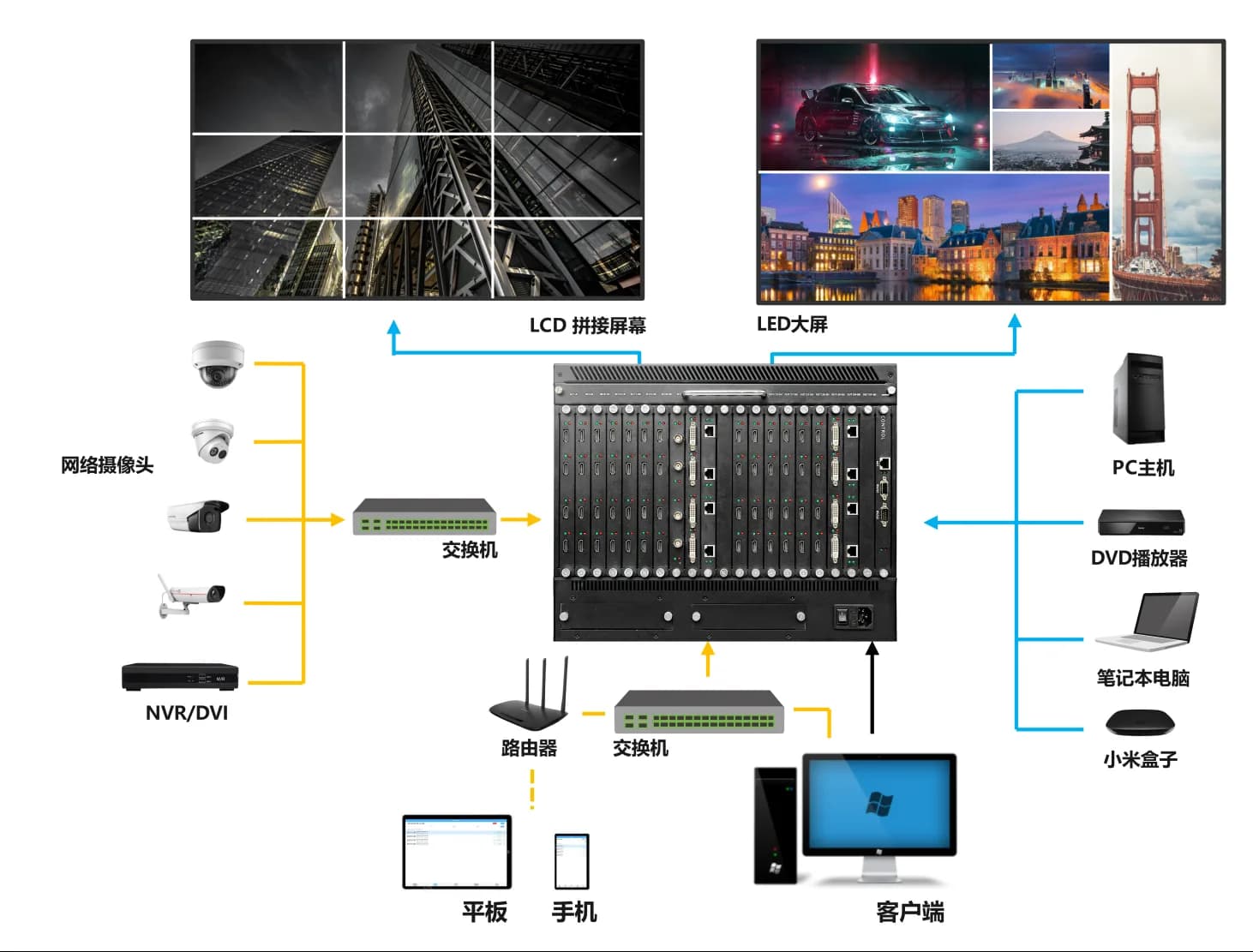

System Wiring

How signals flow

The complete signal path — sources, processing and displays.

Wiring diagram

Specifications

P Series Professional Modular Video Wall Processor — key specifications

Architecture

FPGA pure hardware

Capacity

80 in / 80 out / 80 screens

Wall Groups

Up to 8

Input Types

HDMI / DVI / VGA / CVBS / SDI / IP / DP / HDBaseT / Fiber

Output Types

HDMI / DVI / SDI / HDBaseT / Fiber

Video Input/Output

4K input / 4K output

IP Decoding

H.264 / H.265 · RTSP / ONVIF

IP Decoding per Port

4×4K / 16×1080P / 32×720P / 64×D1

LED Features

Cross-card input/output sync · custom resolution · non-standard LED layouts · 60Hz frame sync · black-edge removal / Crop · Edge Masking · area zoom · smart scaling

Layers per Screen

Chassis

3U / 5U / 8U / 14U

Options

Preview monitor · subtitle card · independent audio · third-party control protocols / secondary development

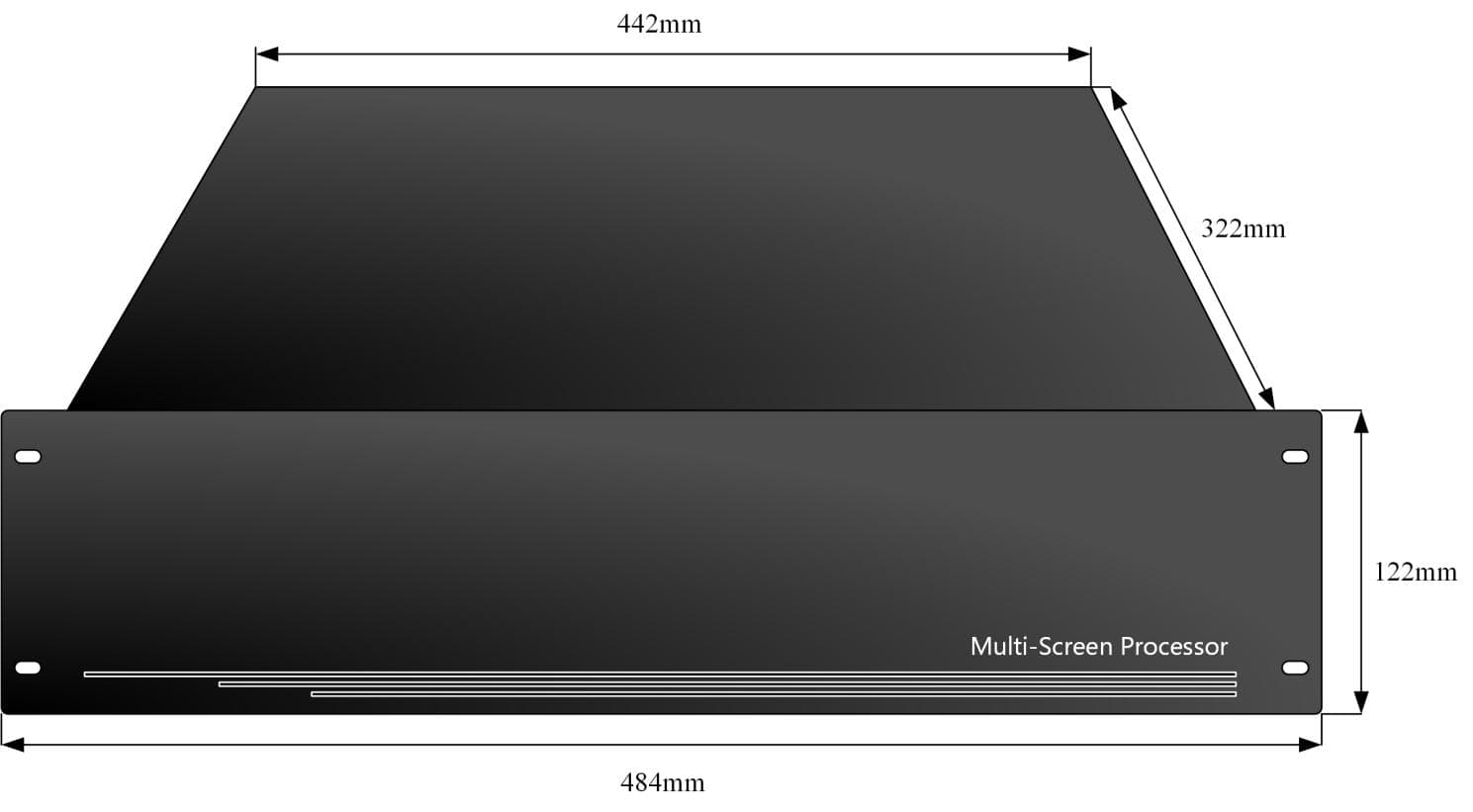

P Series Professional Modular Video Wall Processor dimensions — Dimensions

Chassis & card bundle

P Series Professional Modular Video Wall Processor — built as one system

Multi-format (HDMI/DVI/SDI/IP/HDBaseT/Fiber) — chassis size scales card capacity.Max scale: 80 in / 80 out

Modular chassis with input and output cards — VEXWALL systems are built as one bundle

Chassis + input cards + output cards

3U chassis

up to 80 in / 80 out

Professional AV / LED walls

5U chassis

up to 80 in / 80 out

Command & broadcast centers

8U chassis

up to 80 in / 80 out

Large control rooms

14U chassis

up to 80 in / 80 out

Mission-critical 24/7 sites

Every bundle is confirmed by an engineer against your signal list before any quote.
