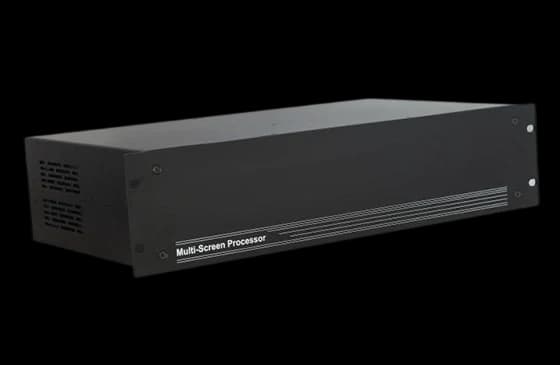

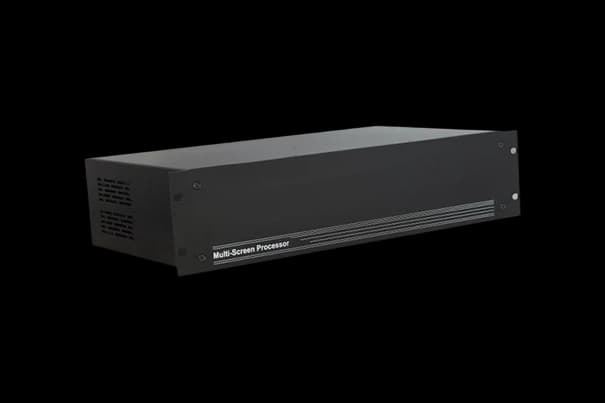

Video Wall Processors
Many sources. One wall. Zero compromise.
Many sources → video wall layout
- Open windows, roam and overlay any source anywhere on the wall
- Pure-hardware FPGA — no OS, no crashes, 24/7 duty
- K / D / P scale from 8 inputs to 80 in / 80 out
- Architecture
- Pure-hardware FPGA
- Capacity
- 8 in / 12 out / 12 screens
- Max Resolution
- 1920×1080@60
- Chassis
- 1.5U
Engineered for reliability
Open, roam, overlap and splice multiple sources freely across a display wall. K, D and P series processors are built on pure-hardware FPGA processing with no operating system, for reliable 24/7 operation.
Download datasheet
Available configurations
Every model has a dedicated specification page — real parameters, interfaces and datasheet from the confirmed knowledge base.
Video Wall Processors — models side by side
Key specifications from the confirmed knowledge base. Click a model name for the full specification sheet.

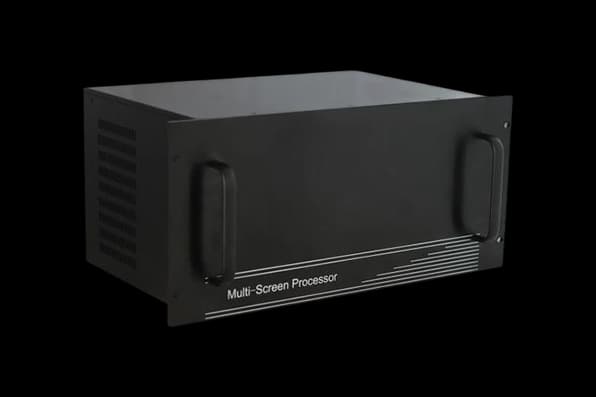

| Specification | K Series Compact HDMI Video Wall Processor | D Series Modular HDMI Video Wall Processor | P Series Professional Modular Video Wall Processor |
|---|---|---|---|
| Capacity | 8 in / 12 out / 12 screens | 40 in / 60 out / 60 screens | 80 in / 80 out / 80 screens |
| Max Resolution | 1920×1080@60 | 1920×1080@60 | — |
| Architecture | Pure-hardware FPGA, no operating system | Pure-hardware FPGA, no operating system | FPGA pure hardware |
| Control | RJ45 + RS232 | RJ45 + RS232 | — |
| Chassis | 1.5U | 3U (2 in + 3 out) / 5U (4 in + 5 out) / 8U (10 in + 10 out) | 3U / 5U / 8U / 14U |
| Power Consumption | 40 W | Up to 350 W | — |
| Layers per Screen | 2 | 2 | 4 |
| Input Cards | 4 × HDMI 1.3 per board | 4 × HDMI 1.3 per board | — |
| Output Cards | 6 × HDMI 1.3 per board | 6 × HDMI 1.3 per board | — |
| Windows per Card | Up to 9 | — | — |
| Audio |
| — | — |
| Dimensions | 484 × 268 × 65 mm | — | — |
| Weight | 5 kg | — | — |
| Power Supply | — | AC power input 50/60Hz | — |
| Wall Groups | — | — | Up to 8 |
| Input Types | — | — | HDMI / DVI / VGA / CVBS / SDI / IP / DP / HDBaseT / Fiber |
| Output Types | — | — | HDMI / DVI / SDI / HDBaseT / Fiber |
| Video Input/Output | — | — | 4K input / 4K output |
| IP Decoding | — | — |
|
| IP Decoding per Port | — | — | 4×4K / 16×1080P / 32×720P / 64×D1 |
| LED Features | — | — |
|
| Options | — | — |
|
Specifications from the confirmed product knowledge base — contact us for the full datasheet per model.
Applications
Where Video Wall Processors do the job
Real environments the hardware is built for. Scenes are shown for illustration — the topology is what you configure and confirm with an engineer.
- Many sources stitched and scaled to one composed wall
- 24/7 operation with pure-hardware FPGA, no operating system
- 4K, IP (H.264/H.265) and LED-friendly configurations
- Routing one signal to a single display — a matrix switcher is enough
- IP camera decode walls — use the decoder matrix series
Not sure? The product finder matches your project in about 60 seconds.
Where Video Wall Processors fit in the signal path
Many sources in, one composed wall out — the path your signals travel, confirmed by an engineer before any quote.
HDMI / DVI sources
PCs · players · cameras
IP streams
H.264 / H.265 · NVR
SDI feeds
Broadcast cameras
WINDOW · ROAM · OVERLAY
K / D / P Processor
One composed wall
LCD · LED · projection
Video Wall Processors — Datasheet
Versioned per series with published specifications, interfaces and mechanical drawings. Request the full pack for every model.
