VEXWALL

Multi-Screen Controllers

One canvas. Every screen. Exactly placed.

One source → many displays

  • Split one ultra-high-resolution input across 4 / 6 / 9 displays
  • 1×N ultra-wide, 2×2 and 3×3 layouts up to 60Hz
  • FPGA real-time — plug in and present, no software
Request a QuoteSee Applications
Overview

Engineered for reliability

Split one ultra-high-resolution input canvas into multiple independent HDMI outputs. Drive 4 to 9 screens with flexible layouts — from ultra-wide 1×N desktops to 2×2 and 3×3 video walls.

Download datasheet

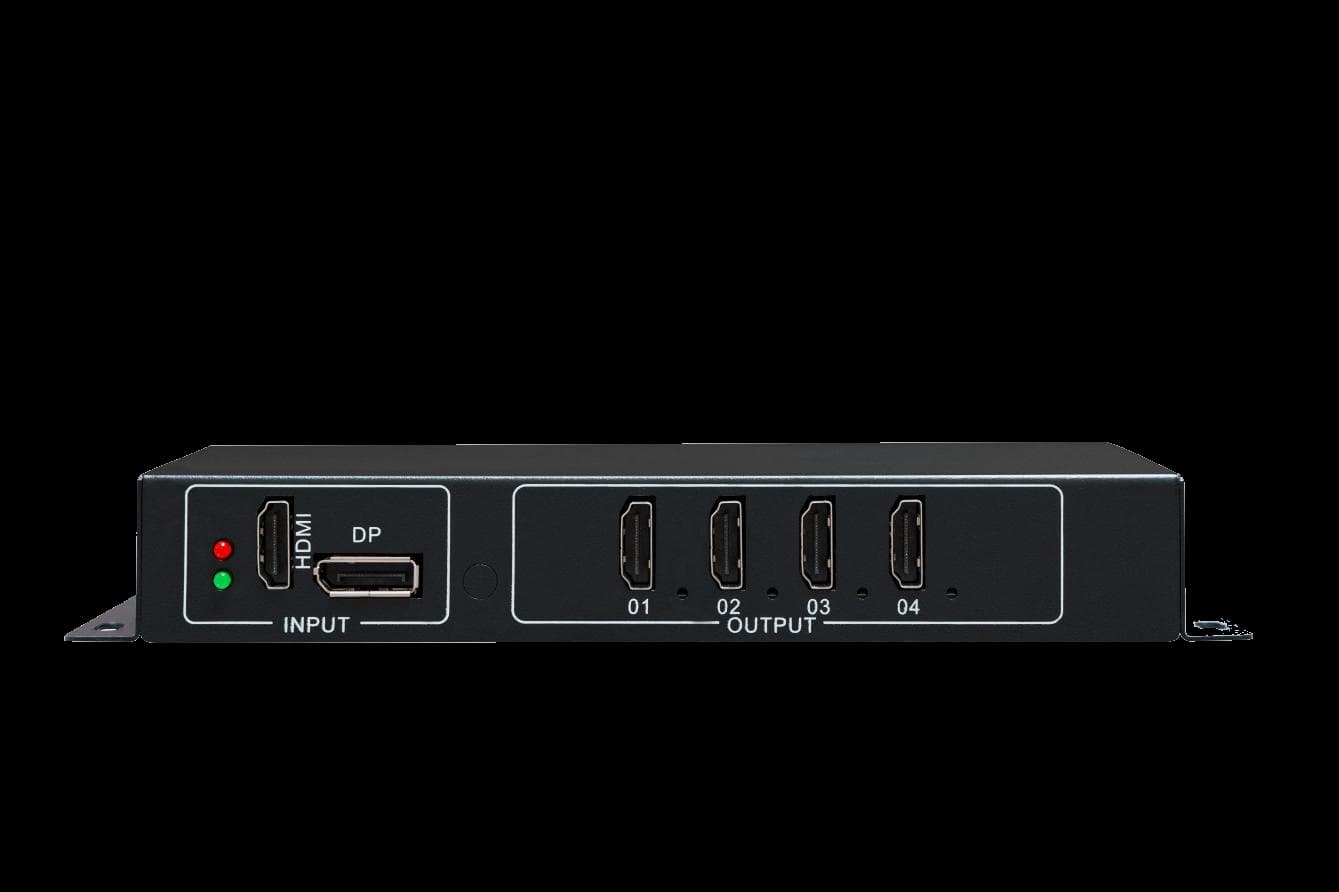

VEXWALL Multi-Screen Controllers — product view
Series

Available configurations

Every model has a dedicated specification page — real parameters, interfaces and datasheet from the confirmed knowledge base.

VEXWALL M104 4-Port Flexible Multi-Screen Controller — front view

M104 4-Port Flexible Multi-Screen Controller

Split one ultra-high-resolution canvas across 4 screens with flexible layouts — ultra-wide 1×N desktops or a 2×2 video wall — from a single DP 1.2 / HDMI 2.0 input.

Input
1 × DP 1.2 / HDMI 2.0
Outputs
4 × HDMI 1.4
Layouts
1×2 (3840×1200@60) · 1×3 (5760×1200@60) · 1×4 (7680×1200@60) · 2×2 (3840×2400@60) · 2×1 (1920×2400@60) · 3×1 (1920×3600@60) · 4×1 (1920×4800@60)
View series

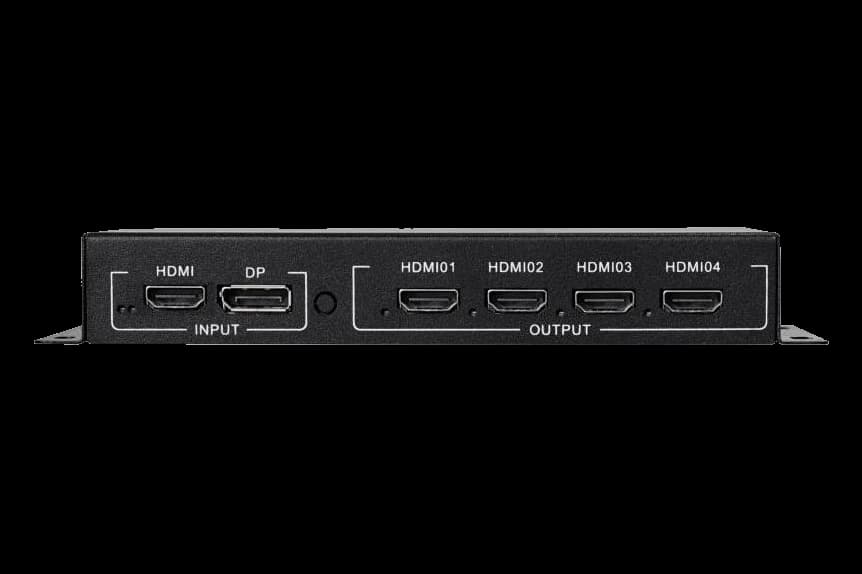

VEXWALL MH04 4-Port HDMI 4K Multi-Screen Controller — front view

MH04 4-Port HDMI 4K Multi-Screen Controller

Drive up to 4 HDMI displays from one DP 1.3 / HDMI 2.0 input in 1×2, 1×3 or 1×4 layouts, with a factory-default 7680×1080 canvas.

Input
1 × DP 1.3 / HDMI 2.0
Outputs
4 × HDMI 1.4
Layouts
1×2 (3840×1200@60) · 1×3 (5760×1200@60) · 1×4 (7680×1200@60)
View series

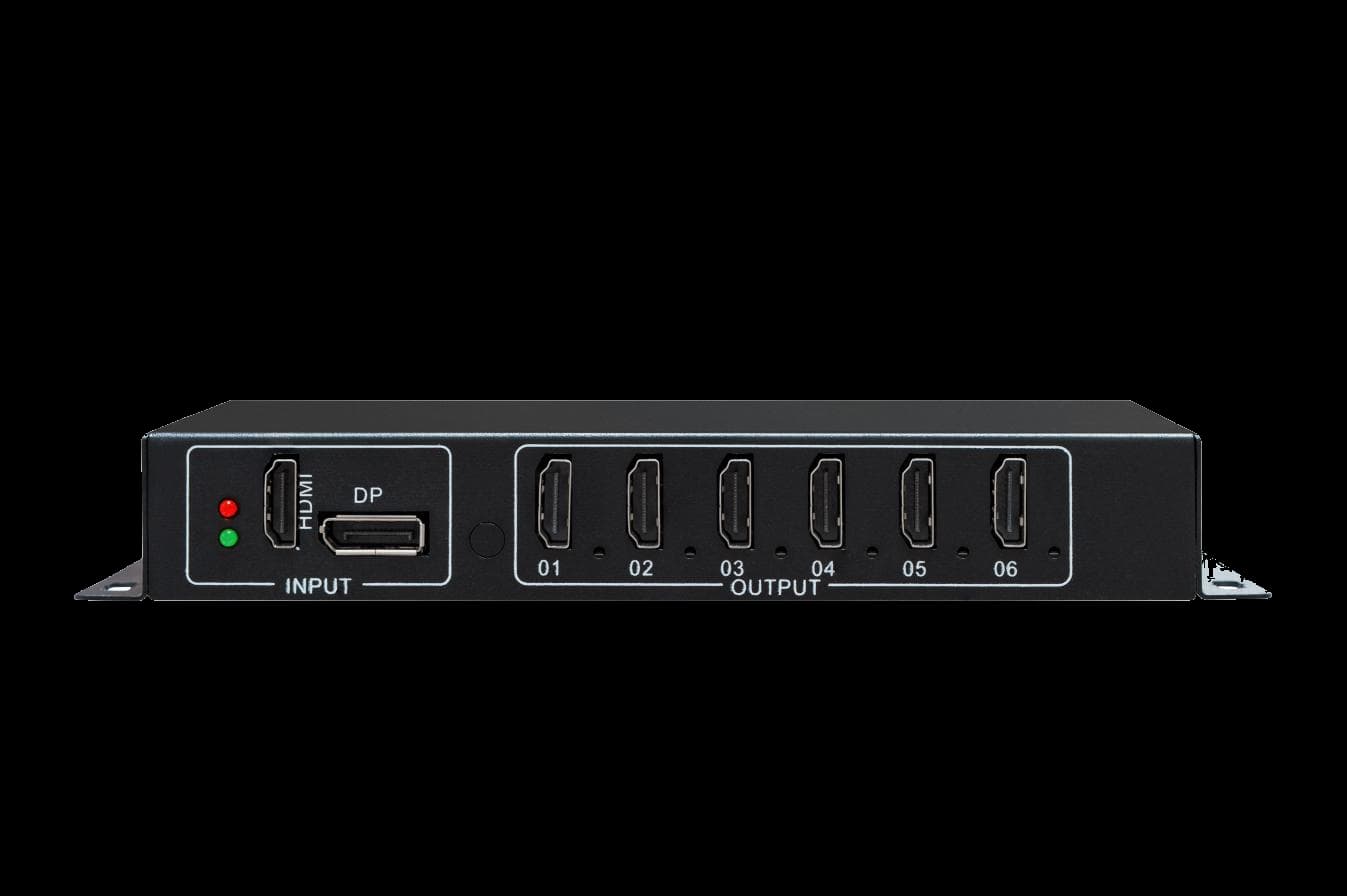

VEXWALL M106 6-Port Flexible Multi-Screen Controller — front view

M106 6-Port Flexible Multi-Screen Controller

Split one ultra-high-resolution canvas across 2 to 6 screens with flexible layouts — from ultra-wide 1×N rows to 2×3 matrices — from a single DP 1.2 / HDMI 2.0 input.

Input
1 × DP 1.2 / HDMI 2.0
Outputs
6 × HDMI
Layouts
1×2 (3840×1200@60) · 1×3 (5760×1200@60) · 1×4 (7680×1200@60) · 1×5 (6400×720@60) · 1×6 (7680×720@60) · 2×2 (3840×2400@60) · 2×3 (5760×2160@30) · 3×2 (3840×3240@30) · 2×1 (1920×2400@60) · 3×1 (1920×3600@60) · 4×1 (1920×4800@60) · 5×1 (1920×5400@30) · 6×1 (1920×6480@30)
View series

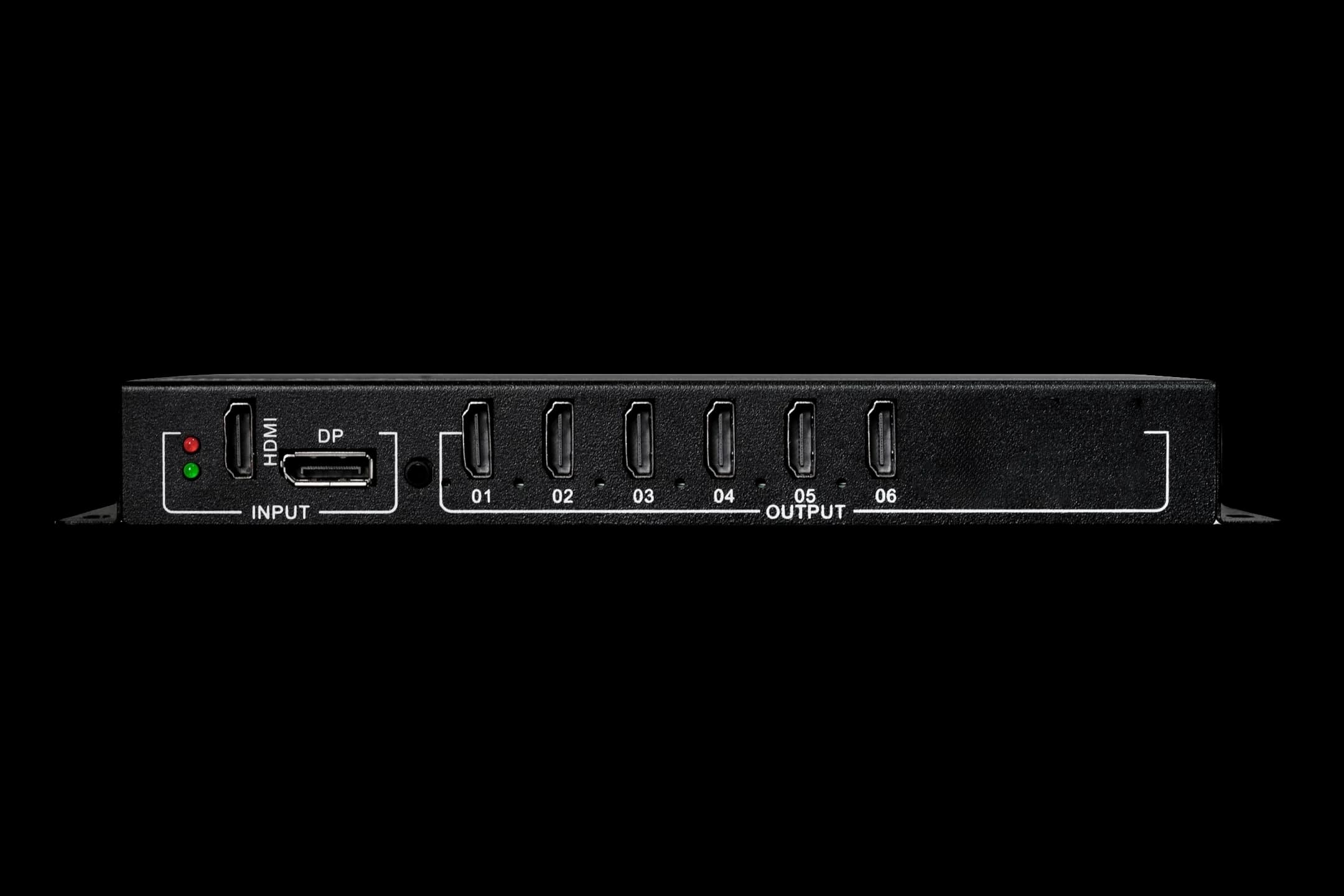

VEXWALL M06 6-Port Ultra-HD Multi-Screen Controller — front view

M06 6-Port Ultra-HD Multi-Screen Controller

Split one ultra-high-resolution canvas across 6 HDMI displays in 1×5, 1×6, 2×3, 3×2, 5×1 or 6×1 layouts from a single DP 1.2 / HDMI 2.0 input.

Input
1 × DP 1.2 / HDMI 2.0
Outputs
6 × HDMI 1.4
Layouts
1×5 (6400×720@30) · 1×6 (7680×720@30) · 2×3 (5760×2160@30) · 5×1 (1920×5400@30) · 6×1 (1920×6480@30) · 3×2 (3840×3240@30)
View series

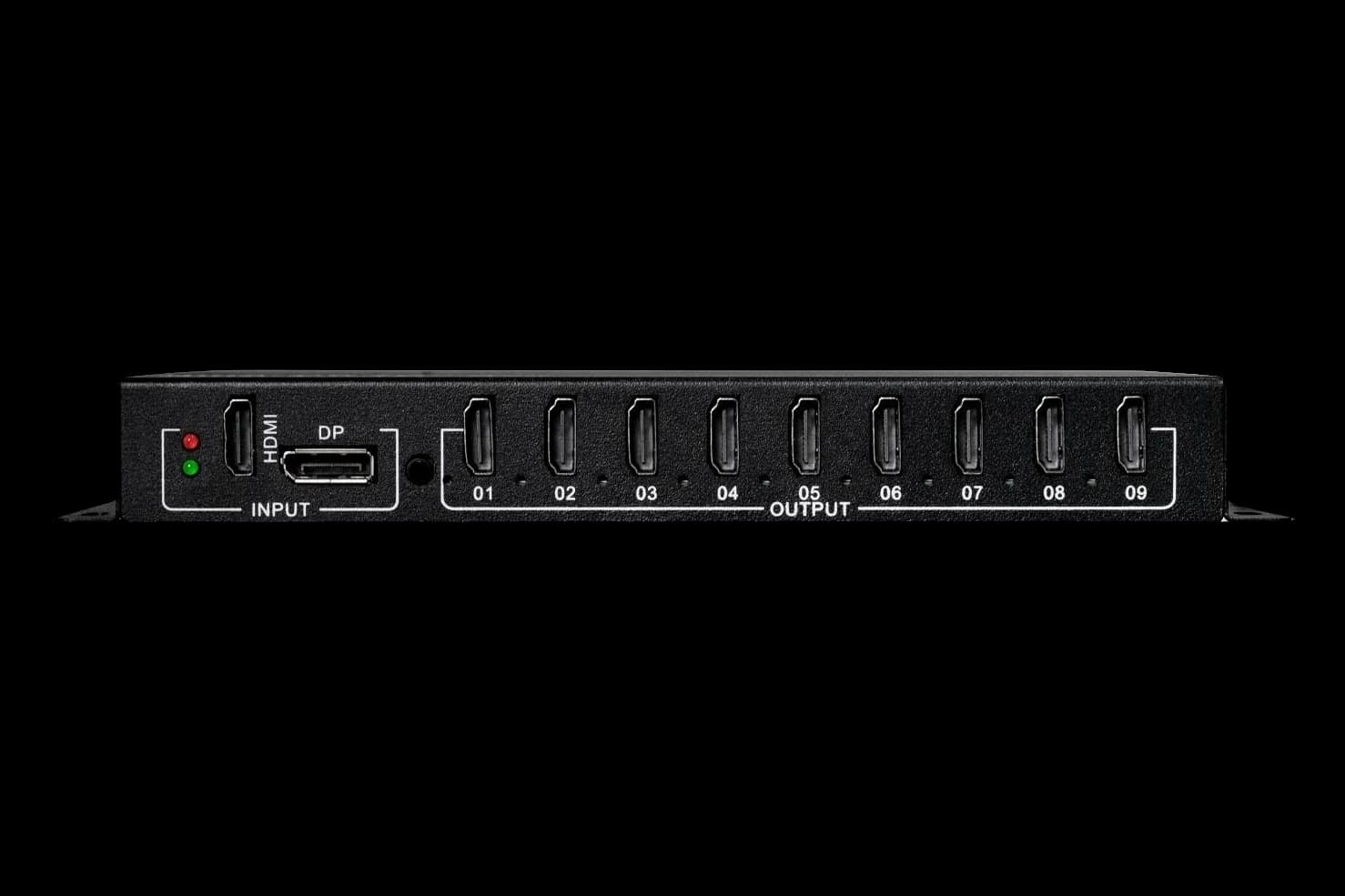

VEXWALL M09 9-Port Ultra-HD Multi-Screen Controller — front view

M09 9-Port Ultra-HD Multi-Screen Controller

Drive 9 screens from one ultra-high-resolution canvas — 3×3 walls, wide 2×4 layouts or 1×8 ultra-wide rows — from a single DP 1.2 / HDMI 2.0 input.

Input
1 × DP 1.2 / HDMI 2.0
Outputs
9 × HDMI 1.4
Layouts
3×3 (3840×2160@60) · 3×3 high-pixel (5760×3240@30) · 2×3 (5760×2160@30) · 2×4 (7680×2160@30) · 1×5 (6400×720@30) · 1×6 (7680×720@30) · 1×7 (6400×540@30) · 1×8 (7680×540@30) · 3×2 / 4×2 / 5×1–9×1 and more
View series
Compare Models

Multi-Screen Controllers — models side by side

Key specifications from the confirmed knowledge base. Click a model name for the full specification sheet.

Side-by-side specification comparison of 5 series in multi-screen-controllers
SpecificationM104 4-Port Flexible Multi-Screen ControllerMH04 4-Port HDMI 4K Multi-Screen ControllerM106 6-Port Flexible Multi-Screen ControllerM06 6-Port Ultra-HD Multi-Screen ControllerM09 9-Port Ultra-HD Multi-Screen Controller
ControlRS232 ×1RS232 ×1RS232 ×1RS232 ×1RS232 ×1
PowerDC 12V 2ADC 12V 2ADC 12V 2ADC 12V 2ADC 12V 2A
Outputs4 × HDMI 1.44 × HDMI 1.46 × HDMI6 × HDMI 1.49 × HDMI 1.4
Input1 × DP 1.2 / HDMI 2.01 × DP 1.3 / HDMI 2.01 × DP 1.2 / HDMI 2.01 × DP 1.2 / HDMI 2.01 × DP 1.2 / HDMI 2.0
Layouts
  • 1×2 (3840×1200@60)
  • 1×3 (5760×1200@60)
  • 1×4 (7680×1200@60)
  • 2×2 (3840×2400@60)
  • 2×1 (1920×2400@60)
  • 3×1 (1920×3600@60)
  • 4×1 (1920×4800@60)
  • 1×2 (3840×1200@60)
  • 1×3 (5760×1200@60)
  • 1×4 (7680×1200@60)
  • 1×2 (3840×1200@60)
  • 1×3 (5760×1200@60)
  • 1×4 (7680×1200@60)
  • 1×5 (6400×720@60)
  • 1×6 (7680×720@60)
  • 2×2 (3840×2400@60)
  • 2×3 (5760×2160@30)
  • 3×2 (3840×3240@30)
  • 2×1 (1920×2400@60)
  • 3×1 (1920×3600@60)
  • 4×1 (1920×4800@60)
  • 5×1 (1920×5400@30)
  • 6×1 (1920×6480@30)
  • 1×5 (6400×720@30)
  • 1×6 (7680×720@30)
  • 2×3 (5760×2160@30)
  • 5×1 (1920×5400@30)
  • 6×1 (1920×6480@30)
  • 3×2 (3840×3240@30)
  • 3×3 (3840×2160@60)
  • 3×3 high-pixel (5760×3240@30)
  • 2×3 (5760×2160@30)
  • 2×4 (7680×2160@30)
  • 1×5 (6400×720@30)
  • 1×6 (7680×720@30)
  • 1×7 (6400×540@30)
  • 1×8 (7680×540@30)
  • 3×2 / 4×2 / 5×1–9×1 and more
Audio3.5 mm (optional)3.5 mm (optional)3.5 mm (optional)3.5 mm (optional)3.5 mm (optional)
Dimensions200 × 118 × 28 mm200 × 28 × 118 mm200 × 118 × 28 mm240 × 160 × 28 mm240 × 160 × 28 mm
Weight1 kg0.55 kg1 kg1 kg1 kg
Factory Default—7680 × 1080———

Specifications from the confirmed product knowledge base — contact us for the full datasheet per model.

Compare all seriesDownload datasheet

Applications

Where Multi-Screen Controllers do the job

Real environments the hardware is built for. Scenes are shown for illustration — the topology is what you configure and confirm with an engineer.

01

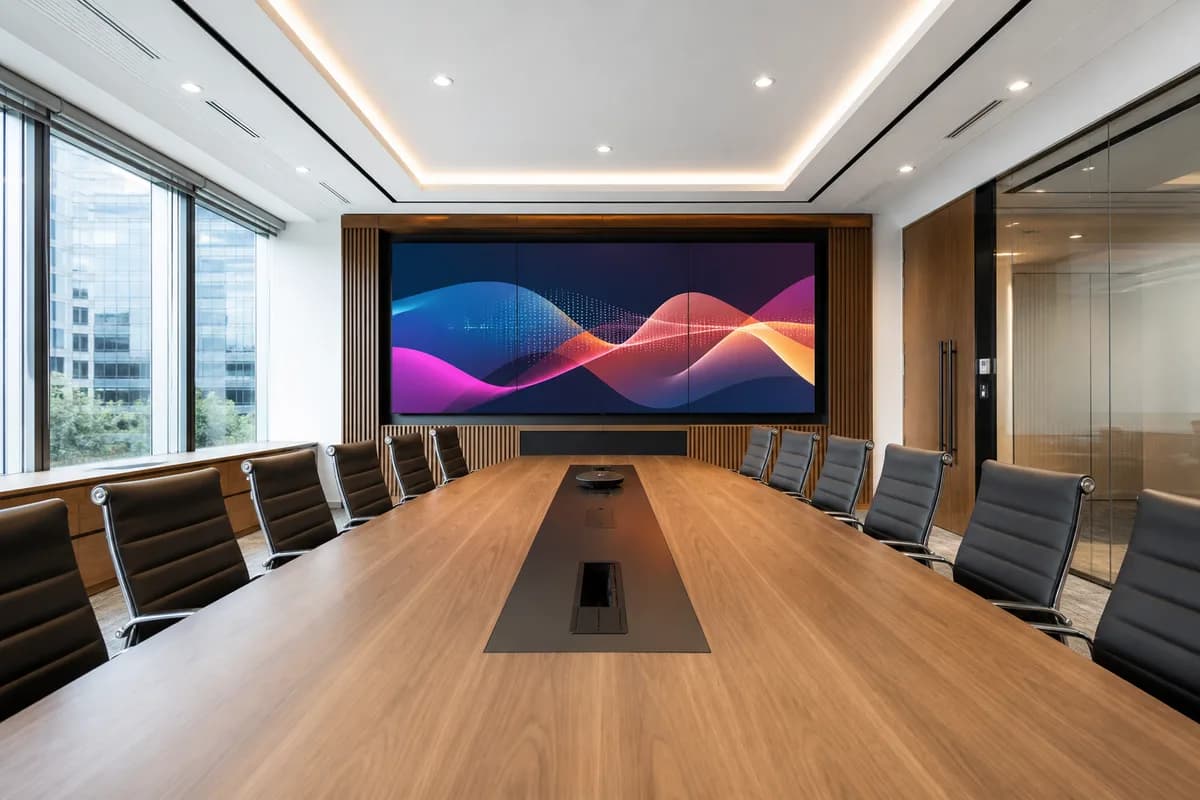

Conference & boardrooms

One canvas across meeting room displays

1× HDMI / DP → M-series controller → 4 / 6 / 9 displays

Explore the application
ILLUSTRATIVE
02

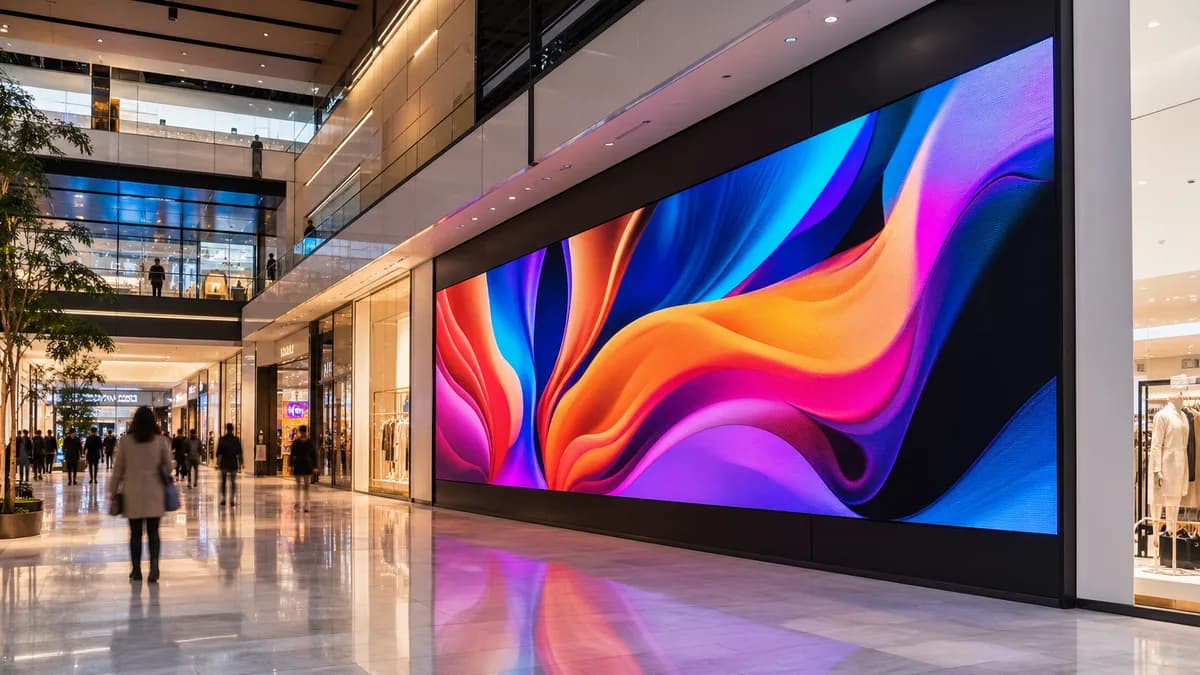

Digital signage

One source stitched across public displays

1× HDMI → M-series controller → signage wall with seamless layout

Explore the application
ILLUSTRATIVE
03

Control workstations

Ultra-wide desktop across trading monitors

1× DP → M-series controller → 2×2 / 1×4 trading desktop

Explore the application
ILLUSTRATIVE
Right for you if…
  • One ultra-HD source split across 2–9 displays
  • Flexible layouts (2×2, 1×4, 3×3) from a single input
  • Simple RS232 control in a compact desk-friendly chassis
Not the right fit if…
  • Many different sources — a processor or matrix is the right tool
  • IP camera decoding to a wall

Not sure? The product finder matches your project in about 60 seconds.

Signal path

Where Multi-Screen Controllers fit in the signal path

Many sources in, one composed wall out — the path your signals travel, confirmed by an engineer before any quote.

DP 1.2 source

Workstation · player

HDMI 2.0 source

Laptop · camera

VEXWALL M-Series Controller — product view

SPLIT · PLACE

M-Series Controller

Video wall display — illustrative

4 / 6 / 9 displays

1×N · 2×2 · 3×3

Documentation

Multi-Screen Controllers — Datasheet

Versioned per series with published specifications, interfaces and mechanical drawings. Request the full pack for every model.

PDF · v1.0EnglishUpdated 2026
