VEXWALL

Seamless Matrix Switchers

Any source to any screen. No black frames.

Many AV sources → any output

  • Seamless switching — no glitches between inputs
  • Mixed cards: HDMI / DVI / VGA / SDI / HDBaseT / IP
  • 8×8 to 40×40 in one modular frame
Request a QuoteSee Applications
Capacity
8 in / 8 out
Max Resolution
4K30
Chassis
2U
Overview

Engineered for reliability

Route many physical AV sources — HDMI, DVI, VGA, AV, SDI and HDBaseT — to any display with seamless switching that avoids black screens and interruptions during input changes. Modular input/output cards scale from 8×8 to 40×40.

Download datasheet

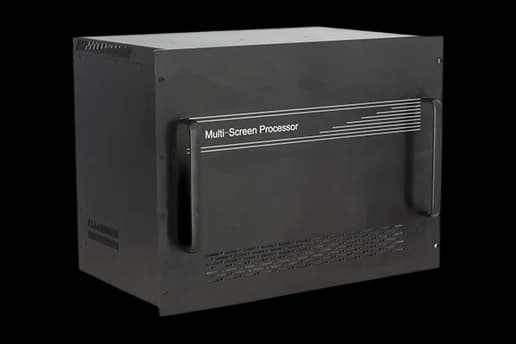

VEXWALL Seamless Matrix Switchers — product view
Series

Available configurations

Every model has a dedicated specification page — real parameters, interfaces and datasheet from the confirmed knowledge base.

VEXWALL Seamless Hybrid Matrix Switcher 8×8 — front view

Seamless Hybrid Matrix Switcher 8×8

Seamless 8×8 hybrid matrix switcher for HDMI, DVI, VGA, AV, SDI and HDBaseT sources — switching without black screens or interruptions, in a 2U chassis.

Capacity
8 in / 8 out
Chassis
2U
Max Resolution
4K30
View series
VEXWALL Seamless Hybrid Matrix Switcher 16×16 — front view

Seamless Hybrid Matrix Switcher 16×16

Seamless 16×16 hybrid matrix switcher for HDMI, DVI, VGA, AV, SDI and HDBaseT sources — switching without black screens or interruptions, in a 3U chassis.

Capacity
16 in / 16 out
Chassis
3U
Max Resolution
4K30
View series
VEXWALL Seamless Hybrid Matrix Switcher 32×32 — front view

Seamless Hybrid Matrix Switcher 32×32

Seamless 32×32 hybrid matrix switcher for HDMI, DVI, VGA, AV, SDI and HDBaseT sources — switching without black screens or interruptions, in a 7U chassis.

Capacity
32 in / 32 out
Chassis
7U
Max Resolution
4K30
View series
VEXWALL Seamless Hybrid Matrix Switcher 40×40 — front view

Seamless Hybrid Matrix Switcher 40×40

Seamless 40×40 hybrid matrix switcher for HDMI, DVI, VGA, AV, SDI and HDBaseT sources — switching without black screens or interruptions, in a 7U chassis.

Capacity
40 in / 40 out
Chassis
7U
Max Resolution
4K30
View series
Compare Models

Seamless Matrix Switchers — models side by side

Key specifications from the confirmed knowledge base. Click a model name for the full specification sheet.

Side-by-side specification comparison of 4 series in seamless-matrix-switchers
SpecificationSeamless Hybrid Matrix Switcher 8×8Seamless Hybrid Matrix Switcher 16×16Seamless Hybrid Matrix Switcher 32×32Seamless Hybrid Matrix Switcher 40×40
Capacity8 in / 8 out16 in / 16 out32 in / 32 out40 in / 40 out
Max Resolution4K304K304K304K30
Control
  • RS232 / TCP-IP
  • open control protocol
  • scene save / recall
  • front-panel LCD
  • RS232 / TCP-IP
  • open control protocol
  • scene save / recall
  • front-panel LCD
  • RS232 / TCP-IP
  • open control protocol
  • scene save / recall
  • front-panel LCD
  • RS232 / TCP-IP
  • open control protocol
  • scene save / recall
  • front-panel LCD
Chassis2U3U7U7U
Resolution Control
  • Input resolution auto-adaptive
  • output resolution adjustable
  • Input resolution auto-adaptive
  • output resolution adjustable
  • Input resolution auto-adaptive
  • output resolution adjustable
  • Input resolution auto-adaptive
  • output resolution adjustable
Signal FormatsHDMI / DVI / VGA / AV / SDI / HDBaseT — mixed input/output cardsHDMI / DVI / VGA / AV / SDI / HDBaseT — mixed input/output cardsHDMI / DVI / VGA / AV / SDI / HDBaseT — mixed input/output cardsHDMI / DVI / VGA / AV / SDI / HDBaseT — mixed input/output cards
HDMI / HDCPHDMI 1.4 / HDCP 1.2HDMI 1.4 / HDCP 1.2HDMI 1.4 / HDCP 1.2HDMI 1.4 / HDCP 1.2
Max VGA Resolution1920×1200@601920×1200@601920×1200@601920×1200@60
SDI3G / HD / SD3G / HD / SD3G / HD / SD3G / HD / SD
HDBaseTUp to 70–100 m over Cat5/Cat6, depending on configurationUp to 70–100 m over Cat5/Cat6, depending on configurationUp to 70–100 m over Cat5/Cat6, depending on configurationUp to 70–100 m over Cat5/Cat6, depending on configuration
SwitchingSeamless — no black screen, no flash, no interruptionSeamless — no black screen, no flash, no interruptionSeamless — no black screen, no flash, no interruptionSeamless — no black screen, no flash, no interruption
Power SupplyOptional dual power supplyOptional dual power supplyOptional dual power supplyOptional dual power supply

Specifications from the confirmed product knowledge base — contact us for the full datasheet per model.

Compare all seriesDownload datasheet

Chassis & card bundle

Seamless Matrix Switchers — built as one system

Hybrid input/output cards — scale from 8×8 to 40×40 in one modular frame.Max scale: 40 × 40

Modular chassis with input and output cards — VEXWALL systems are built as one bundle

Chassis + input cards + output cards

2U chassis
8 × 8

Meeting rooms & small distribution

3U chassis
16 × 16

Conference centers & hotels

7U chassis
32 × 32

Broadcast & large facilities

7U chassis
40 × 40

Large-scale AV routing

Every bundle is confirmed by an engineer against your signal list before any quote.

Configure your bundle

Applications

Where Seamless Matrix Switchers do the job

Real environments the hardware is built for. Scenes are shown for illustration — the topology is what you configure and confirm with an engineer.

01

Conference centers

Seamless routing for meeting spaces

HDMI / DVI / VGA / HDBaseT → matrix switcher → room displays

Explore the application
ILLUSTRATIVE
02

Command & control

Any source to any display, no black screens

Multi-format inputs → matrix switcher → control room displays

Explore the application
ILLUSTRATIVE
03

Broadcast & event routing

Large-scale AV distribution

HDMI / SDI / HDBaseT → matrix switcher → broadcast & event outputs

Explore the application
ILLUSTRATIVE
Right for you if…
  • Many AV sources (HDMI / DVI / VGA / SDI / HDBaseT) to any output
  • Seamless switching — no black screen, no flash between sources
  • Scalable modular frames from 8×8 to 40×40
Not the right fit if…
  • IP camera decode walls — use the decoder matrix series
  • A single source to many displays — a multi-screen controller is simpler

Not sure? The product finder matches your project in about 60 seconds.

Signal path

Where Seamless Matrix Switchers fit in the signal path

Many sources in, one composed wall out — the path your signals travel, confirmed by an engineer before any quote.

HDMI sources

Laptops · players

VGA / DVI

Legacy PCs

HDBaseT / SDI

Remote · broadcast

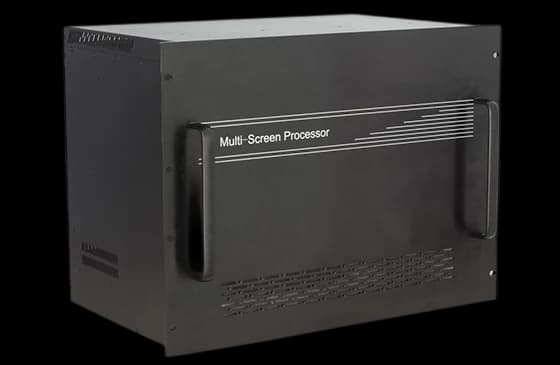

VEXWALL Seamless Matrix — product view

8×8 → 40×40

Seamless Matrix

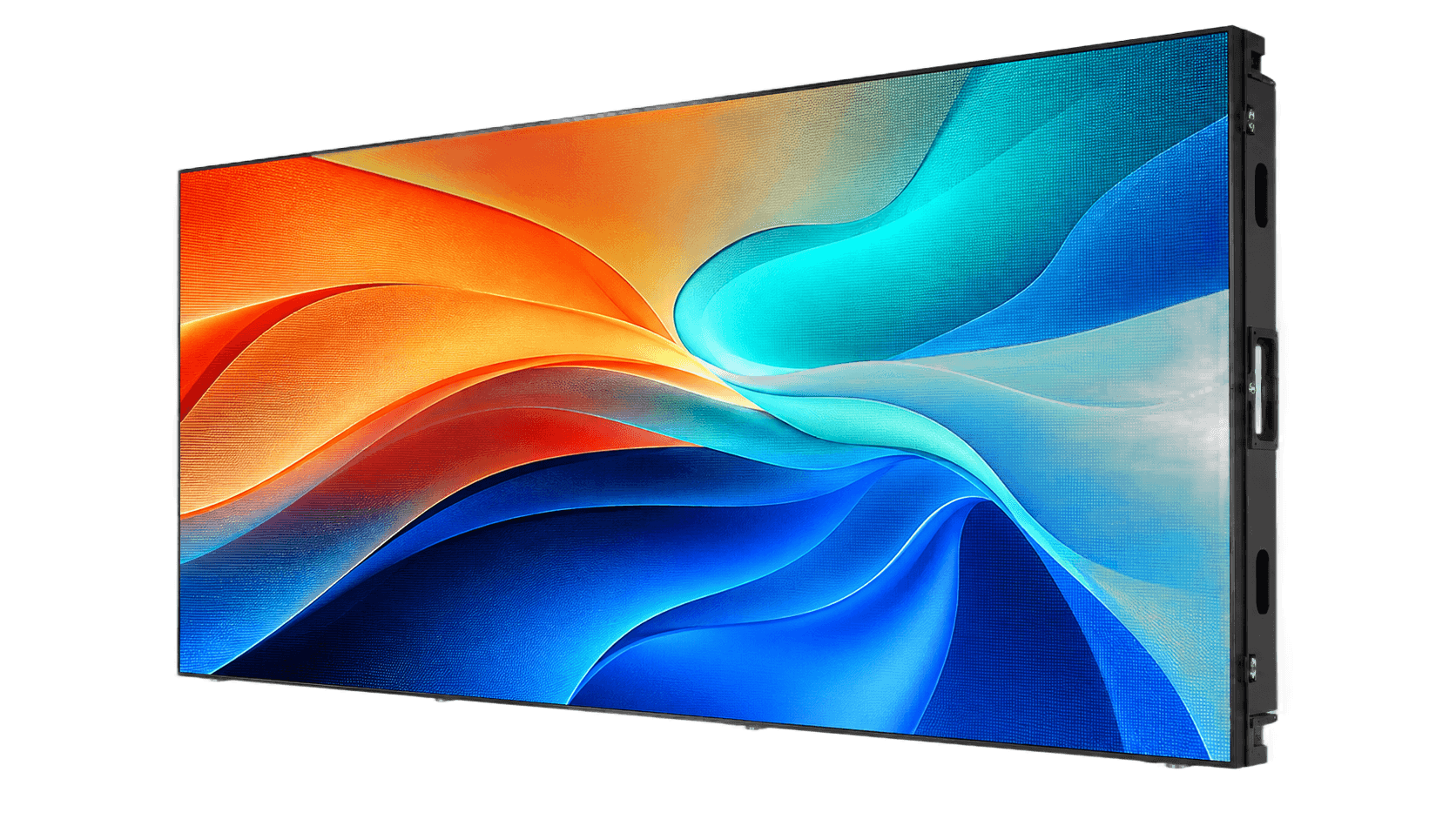

Video wall display — illustrative

Any display

Seamless, no black frames

Documentation

Seamless Matrix Switchers — Datasheet

Versioned per series with published specifications, interfaces and mechanical drawings. Request the full pack for every model.

PDF · v1.0EnglishUpdated 2026
