Network Video Decoder Matrices
Every camera. Every screen. Always on.

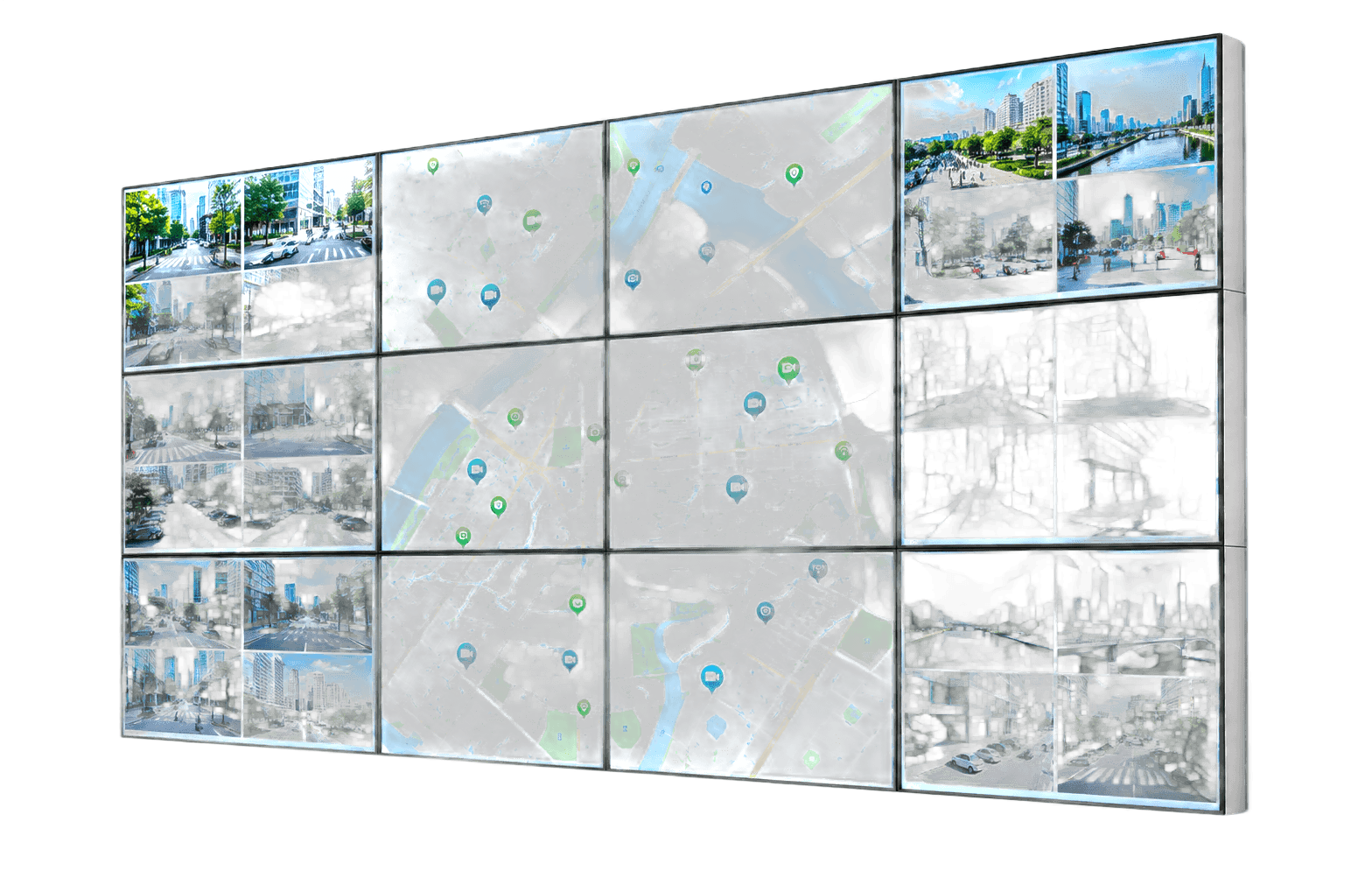

IP cameras → decode → surveillance wall
- Decode up to 32×1080P or 4K/8MP streams per card
- H.265 / H.264 with ONVIF / RTSP / GB28181
- 1U / 3U / 5U chassis scales with your camera count
Engineered for reliability

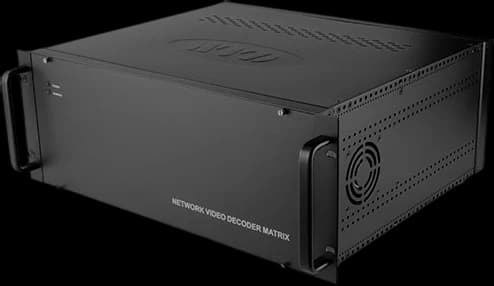

Decode large numbers of IP camera streams — H.265 / H.264 / MPEG4 with ONVIF / RTSP / RTMP support — and display them on a surveillance wall. Rack-mount chassis with decoder cards scale from compact 1U to 5U systems, with 4K/8MP decoding, web control, scene presets and multi-unit cascade.
Download datasheet
Available configurations
Every model has a dedicated specification page — real parameters, interfaces and datasheet from the confirmed knowledge base.
Network Video Decoder Matrices — models side by side
Key specifications from the confirmed knowledge base. Click a model name for the full specification sheet.
| Specification | NM-16 Network Video Decoder Matrix | NM-25 Network Video Decoder Matrix | NM-3236 Network Video Decoder Matrix |
|---|---|---|---|
| Architecture | — | — | Linux embedded |
| Decoding per Card |
|
| — |
| Outputs per Card | 2 × HDMI | 1 × HDMI | — |
| Splits per Card | 1 / 4 / 6 / 8 / 9 / 10 / 16 | 1 / 4 / 9 / 16 / 25 | — |
| Chassis Options |
|
| — |
| Platform | Linux embedded | Linux embedded | — |
| Video Codecs | H.265 / H.264 / MPEG4 | H.265 / H.264 / MPEG4 | H.265 / H.264 / MPEG4 |
| Protocols | ONVIF / RTSP / RTMP | ONVIF / RTSP / RTMP | ONVIF / RTSP / RTMP |
| Features |
|
|
|
| Decoding | — | — | 4K / 8MP network video decoding |
| Video Wall | — | — | Multi-screen video wall |
| Window Functions | — | — | Split / merge / roam / PiP |
| MOQ / Lead Time / Warranty | — | — | Contact us for terms |
Specifications from the confirmed product knowledge base — contact us for the full datasheet per model.

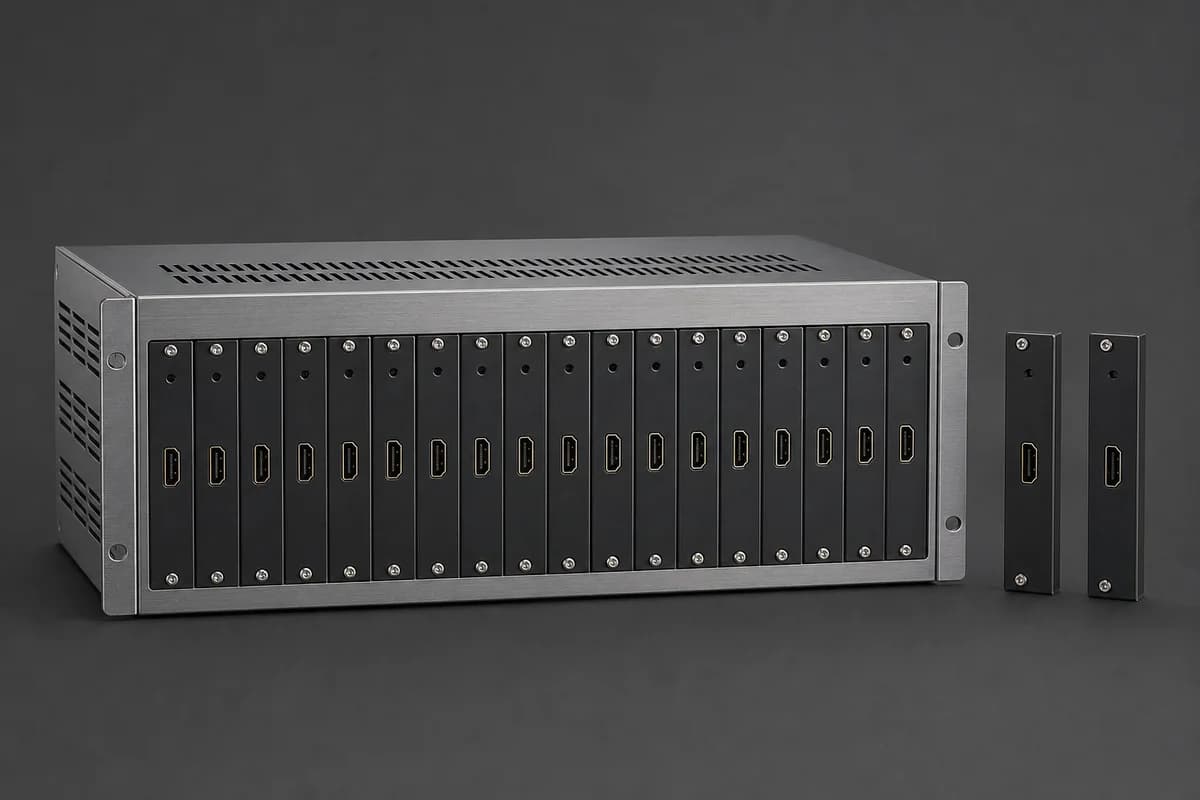

Chassis & card bundle
Network Video Decoder Matrices — built as one system
Pick a chassis, we configure the card bundle to your camera count and wall size.Max scale: 22 in / 46 out
Chassis + input cards + output cards
Small camera walls & branch monitoring
Mid-size control rooms
Large 24/7 surveillance centers
Every bundle is confirmed by an engineer against your signal list before any quote.
Configure your bundleApplications
Where Network Video Decoder Matrices do the job

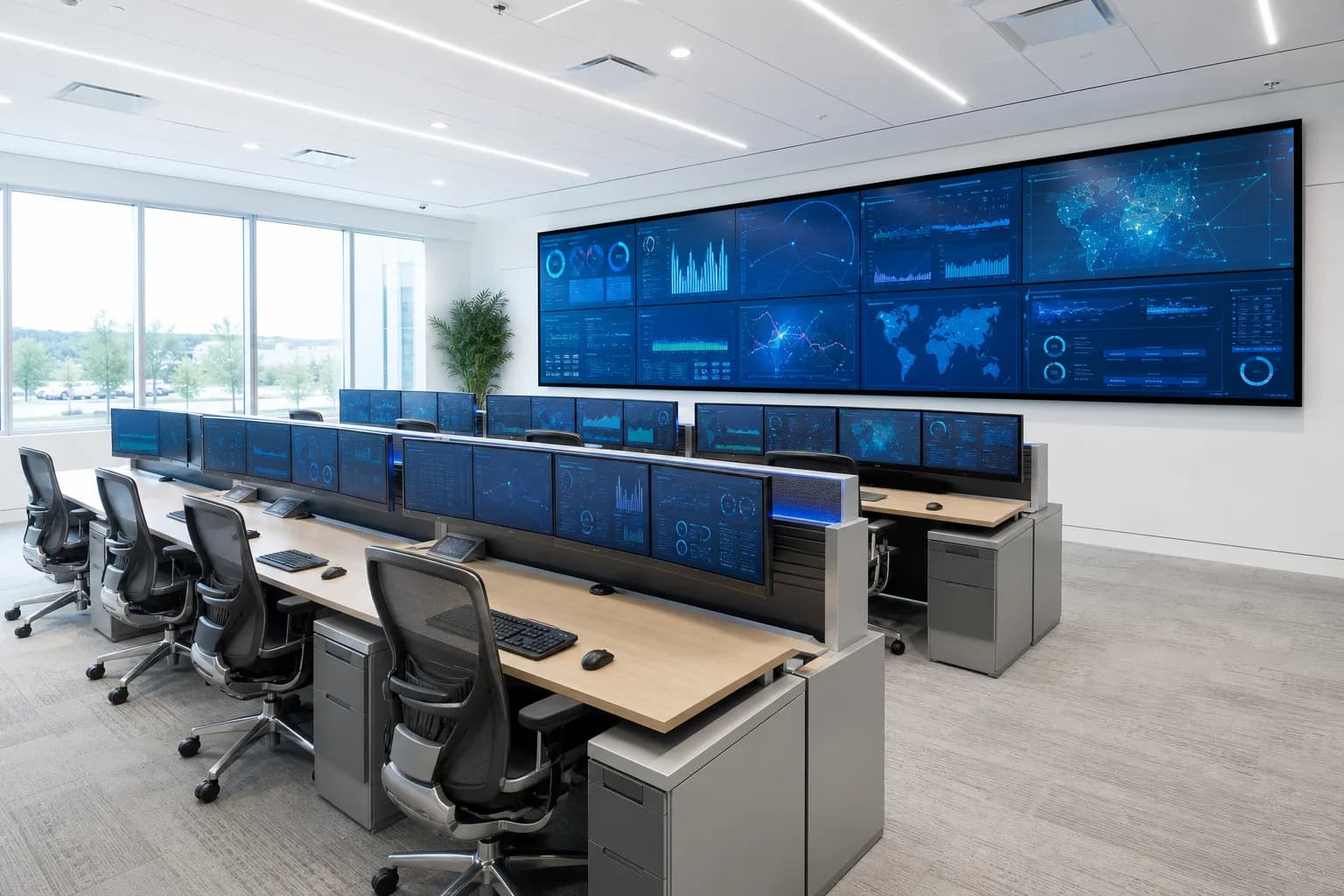

Real environments the hardware is built for. Scenes are shown for illustration — the topology is what you configure and confirm with an engineer.

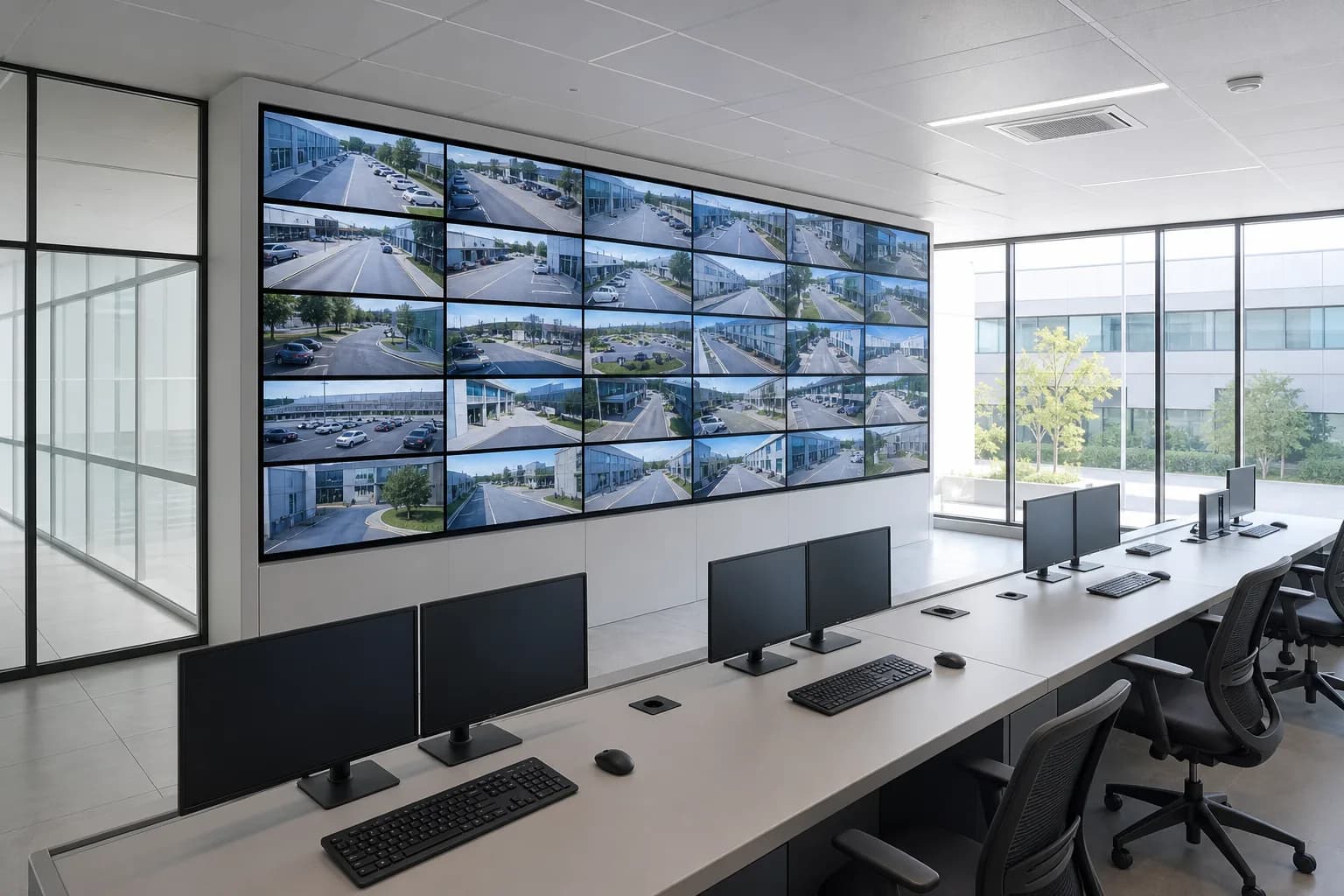

- IP camera walls from H.265 / H.264 / ONVIF / RTSP streams
- High split density per screen (up to 25 windows per output)
- Multi-subnet decoding and cascading across sites
- Local HDMI signal routing — a matrix is the right tool
- Stitching of non-IP sources — use a processor
Not sure? The product finder matches your project in about 60 seconds.
Where Network Video Decoder Matrices fit in the signal path
Many sources in, one composed wall out — the path your signals travel, confirmed by an engineer before any quote.
IP cameras
ONVIF · RTSP
NVR streams
GB28181 · RTMP
Local HDMI
PC · signage
H.265 / H.264

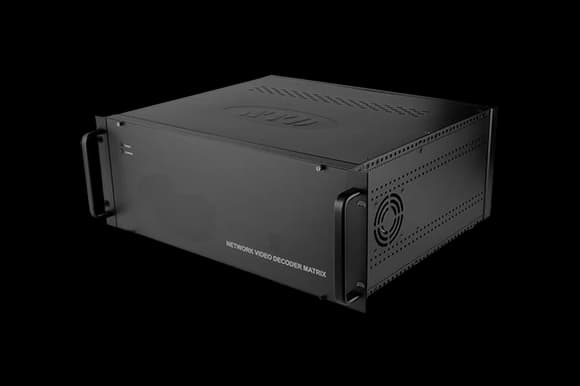

NM Decoder Matrix
Surveillance wall
Up to 192 windows
Network Video Decoder Matrices — Datasheet
Versioned per series with published specifications, interfaces and mechanical drawings. Request the full pack for every model.
Build your Network Video Decoder Matrices wall
Tell us your project requirements — our engineers will tailor a solution and provide a quote.
