VEXWALL

K Series Compact HDMI Video Wall Processor

Compact 1.5U modular video wall processor — up to 8 inputs and 12 outputs on pure-hardware FPGA processing with no operating system. Ideal for small and medium splicing walls.

Request a QuoteCompare Series
VEXWALL K Series Compact HDMI Video Wall Processor — product view

Pure-Hardware Video Wall Processor

Interface & Specs

Every port, clearly mapped

Complete interface configuration for this model — input, output, control and power. An engineer confirms the exact configuration before any quote.

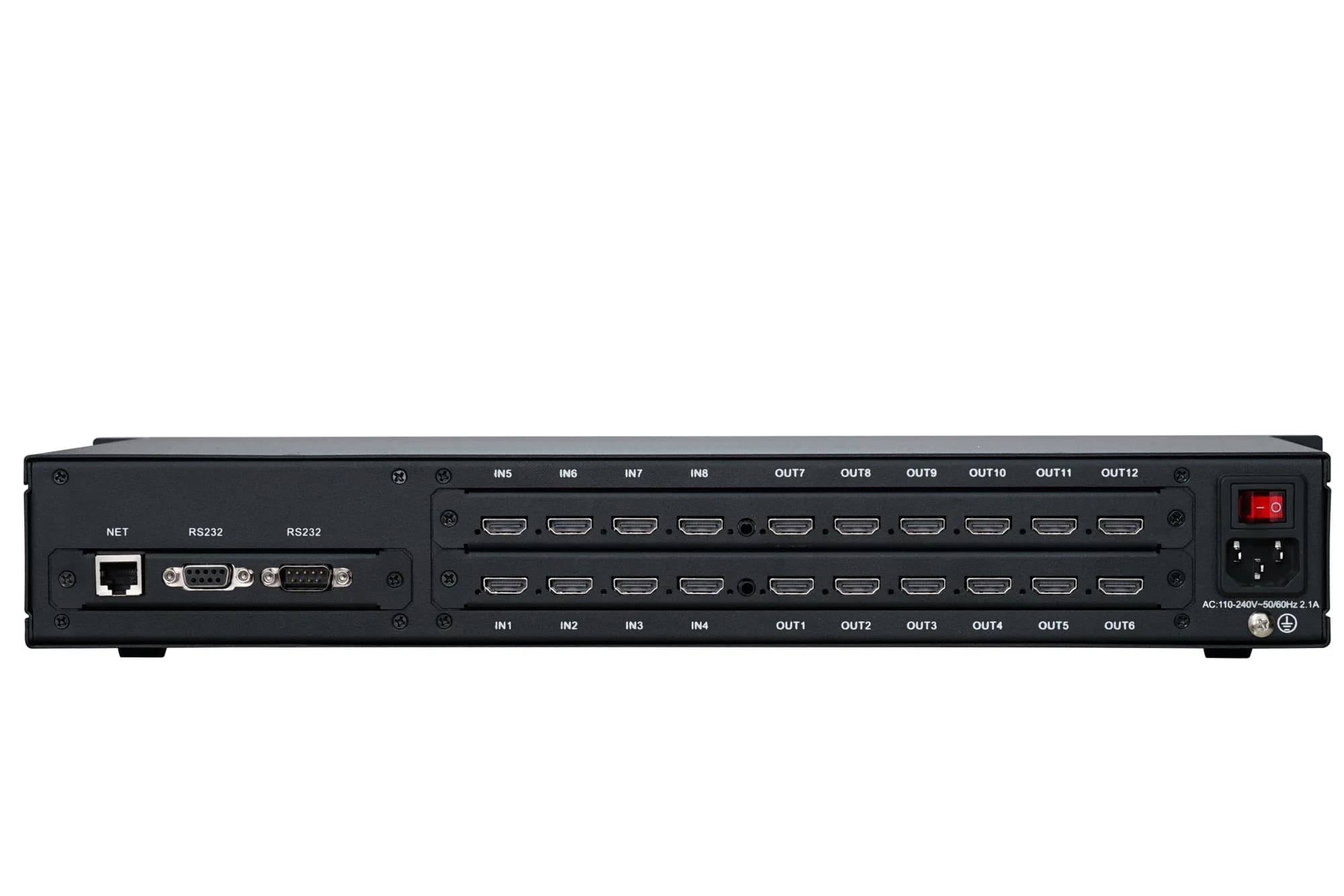

k-series interface diagram

Interface diagram

Chassis
1.5U
Max Input
8
Max Output
12
Card types
1 IN · 1 OUT · 1 CTRL
Capability Matrix

Cards and windows, built to spec

Published values — no rounded numbers, no invented modes.

Input cards · 1
  • HDMI I/O card (input side)4 inputs per board, HDMI 1.3, embedded audio, up to 1920×1080@60Hz, progressive only
Output cards · 1
  • HDMI I/O card (output side)6 outputs per board, HDMI 1.3, up to 1920×1080@60Hz, 1×3.5mm headphone jack, independent audio output
Control · 1
  • Control card1×RJ45 (100Mbps), 1×DB9 female (RS232), 1×DB9 male (RS232)
Windows per output
2 windows
Windows per card
9 shared windows
Real Hardware

Real hardware, front and back

Actual front and rear panels of this exact model.

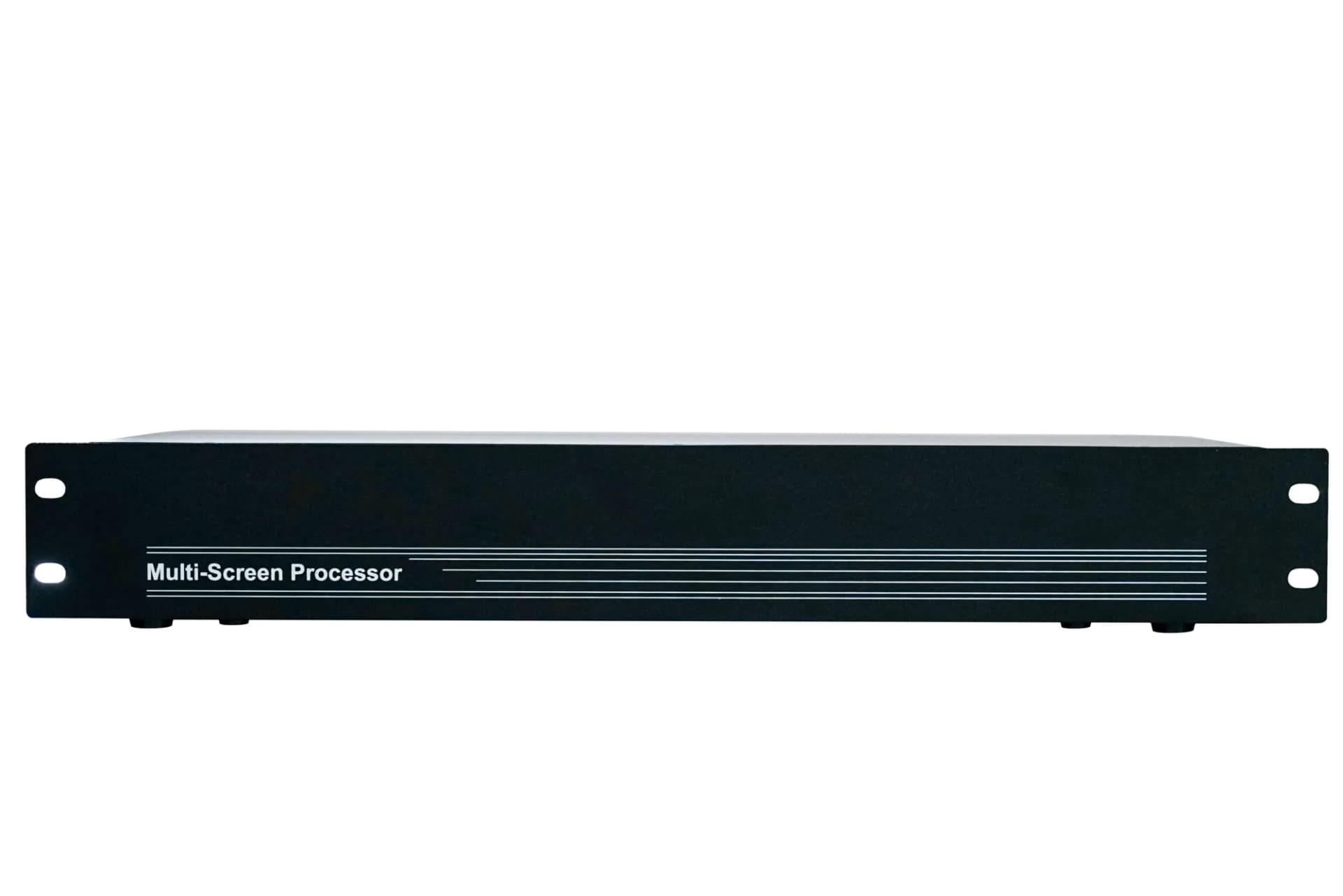

k-series hardware photo — K-series-001
Front panel

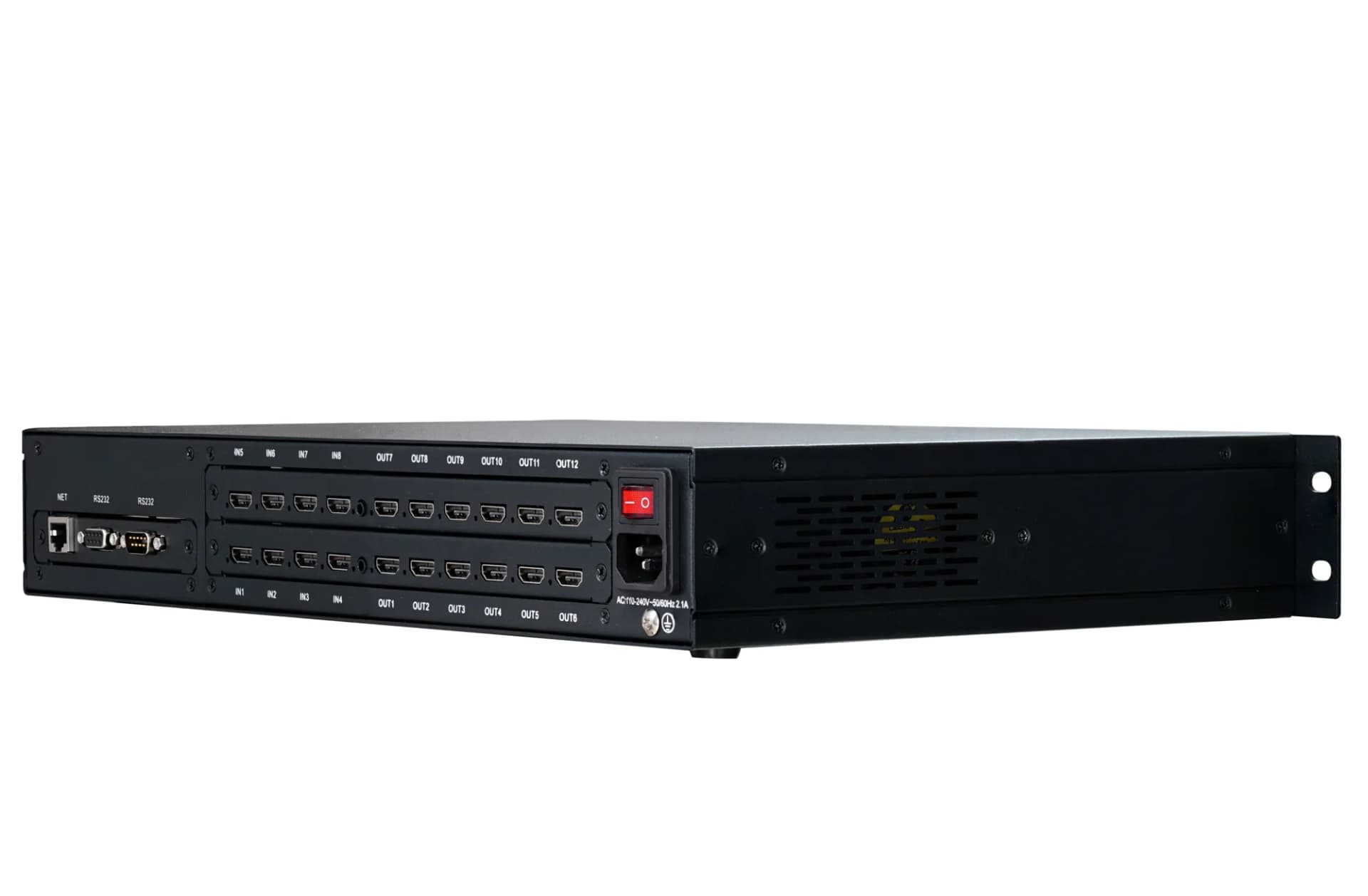

k-series hardware photo — K-series-003
Front panel
I/O Explorer

Hover the real rear panel

Every port cluster on the real K Series rear panel — hover to see the signal type.

K-Series · 8 IN / 12 OUT
VEXWALL K Series rear panel — real HDMI in / out, control and power ports
NET · RS232
RJ45 IP control · dual RS232 serial
HDMI IN 1–8
Eight HDMI inputs · any source to any zone
HDMI OUT 1–12
Twelve HDMI outputs · wall zones / loop
AC Power
110–240V · IEC inlet · rocker switch
NET · RS232
RJ45 IP control · dual RS232 serial
HDMI IN 1–8
Eight HDMI inputs · any source to any zone
HDMI OUT 1–12
Twelve HDMI outputs · wall zones / loop
AC Power
110–240V · IEC inlet · rocker switch

Hover the panel — real I/O, real protocols

System Wiring

How signals flow

The complete signal path — sources, processing and displays.

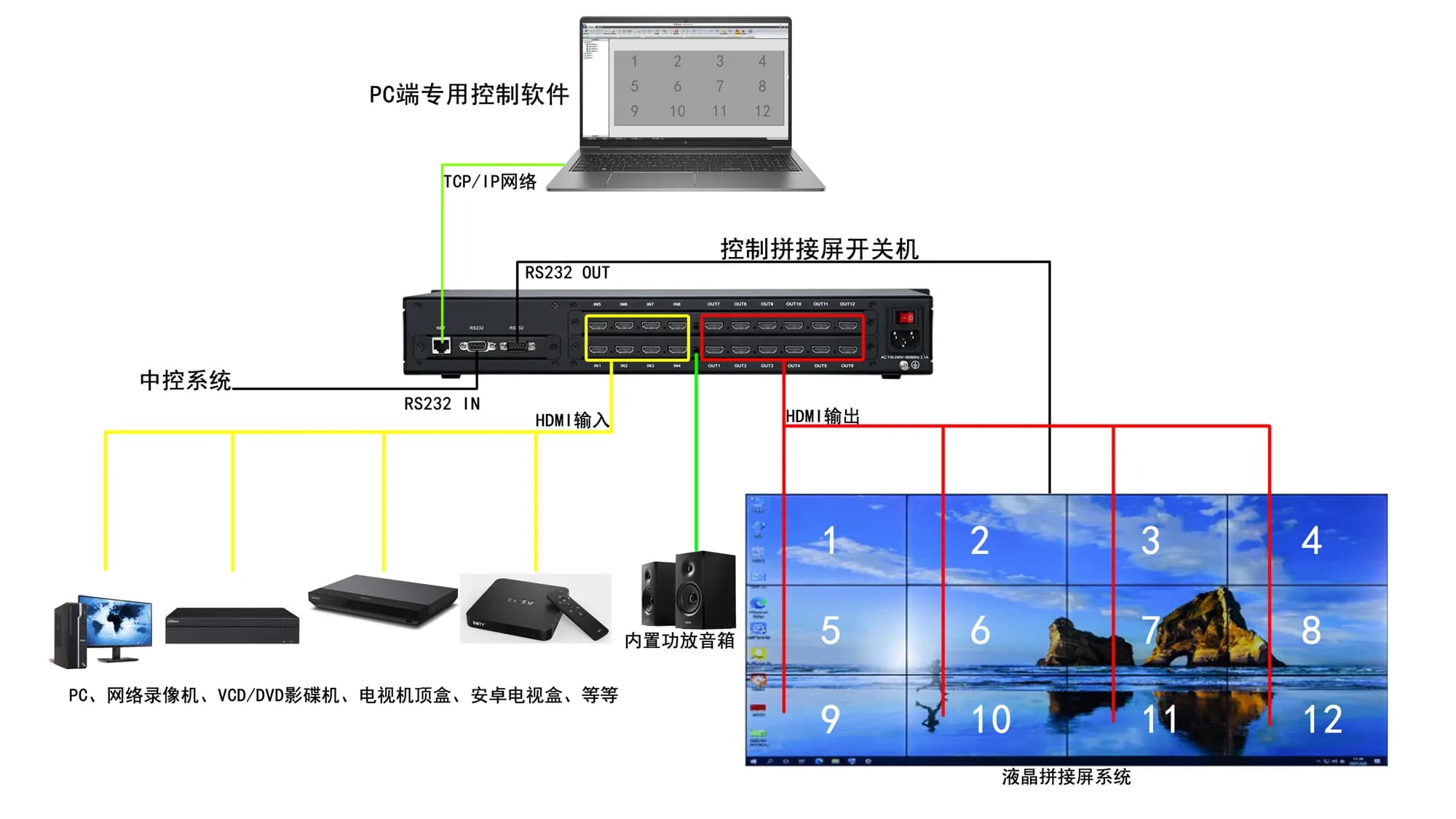

k-series system wiring diagram

Wiring diagram

Specifications

K Series Compact HDMI Video Wall Processor — key specifications

Architecture
Pure-hardware FPGA, no operating system
Capacity
8 in / 12 out / 12 screens
Max Resolution
1920×1080@60
Layers per Screen
2
Input Cards
4 × HDMI 1.3 per board
Output Cards
6 × HDMI 1.3 per board
Windows per Card
Up to 9
Control
RJ45 + RS232
Audio
HDMI embedded audio input · 3.5 mm independent audio output
Chassis
1.5U
Power Consumption
40 W
Dimensions
484 × 268 × 65 mm
Weight
5 kg

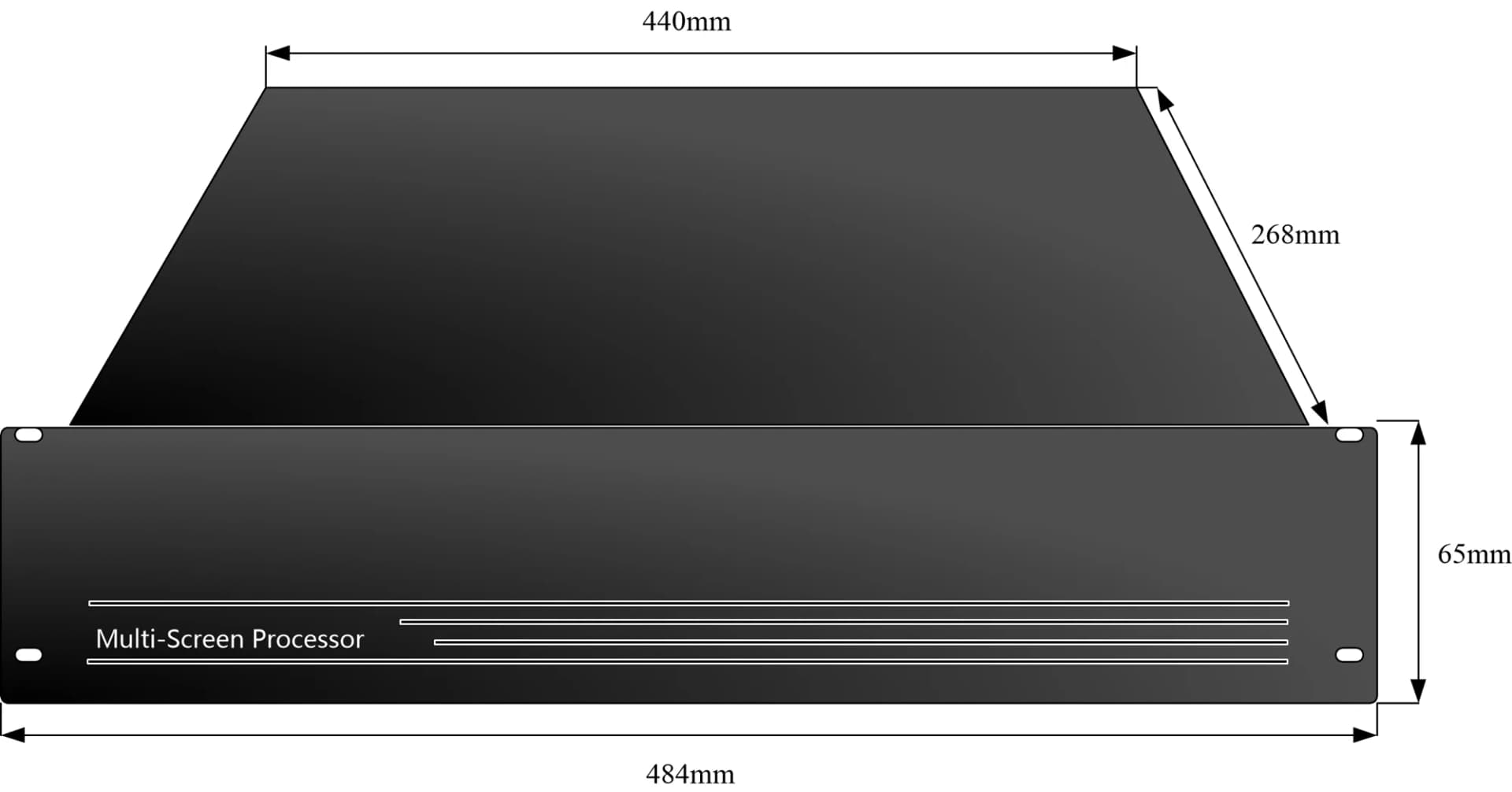

K Series Compact HDMI Video Wall Processor dimensions
Dimensions

Fixed configuration

Fixed 1.5U chassis — 8 in / 12 out, no card selection needed.

Compare Series

Pick the right processing tier

VEXWALL K Series Compact HDMI Video Wall Processor — front view

K Series Compact HDMI Video Wall Processor

Compact 1.5U modular video wall processor — up to 8 inputs and 12 outputs on pure-hardware FPGA processing with no operating system. Ideal for small and medium splicing walls.

View series
Current
VEXWALL D Series Modular HDMI Video Wall Processor — front view

D Series Modular HDMI Video Wall Processor

Modular FPGA processing for large walls — up to 40 inputs and 60 outputs across 3U / 5U / 8U chassis, with pure-hardware reliability and no operating system.

View series
VEXWALL P Series Professional Modular Video Wall Processor — front view

P Series Professional Modular Video Wall Processor

Professional modular platform for 4K, IP and LED walls — up to 80 inputs and 80 outputs in up to 8 wall groups, with multi-format input/output cards, IP decoding and LED-friendly features.

View series

Spec the K Series Compact HDMI Video Wall Processor

Tell us your input sources, outputs and wall size — we will confirm configuration, pricing, MOQ and lead time.

Request Datasheet
