M09 9-Port Ultra-HD Multi-Screen Controller

Drive 9 screens from one ultra-high-resolution canvas — 3×3 walls, wide 2×4 layouts or 1×8 ultra-wide rows — from a single DP 1.2 / HDMI 2.0 input.

Request a QuoteCompare Series
VEXWALL M09 9-Port Ultra-HD Multi-Screen Controller — product view

Multi-Screen Controllers · M09 9-Port Ultra-HD Multi-Screen Controller

Interface & Specs

Every port, clearly mapped

Complete interface configuration for this model — input, output, control and power. An engineer confirms the exact configuration before any quote.

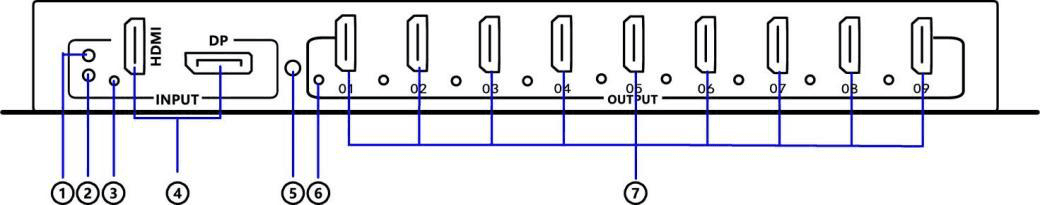

m09 interface diagram

Interface diagram

Input
1DP 1.2
Shared with HDMI (either/or)
1HDMI 2.0
Shared with DP (either/or)
Outputs
9HDMI 1.4
Control
1RS232
Audio
13.5mm audio output
Optional
Capability Matrix

Every layout, real resolutions

Published values — no rounded numbers, no invented modes.

Horizontal layouts
1x5
6400×720@30Hz
1x6
7680×720@30Hz
1x7
6400×540@30Hz
1x8
7680×540@30Hz
2x3
5760×2160@30Hz
2x4
7680×2160@30Hz
3x3
3840×2160@60Hz
3x3-high
5760×3240@30Hz
Vertical layouts
5x1
1920×5400@30Hz
6x1
1920×6480@30Hz
7x1
1920×7560@30Hz
8x1
1280×5760@30Hz
9x1
1280×6480@30Hz
3x2
3840×3240@30Hz
4x2
3840×4320@30Hz
Real Hardware

Real hardware, front and back

Actual front and rear panels of this exact model.

m09 hardware photo — M09-p5-i00

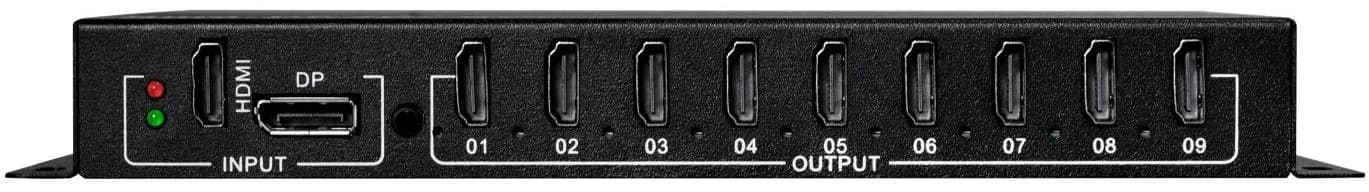

Front panel
m09 hardware photo — M09-p5-i01

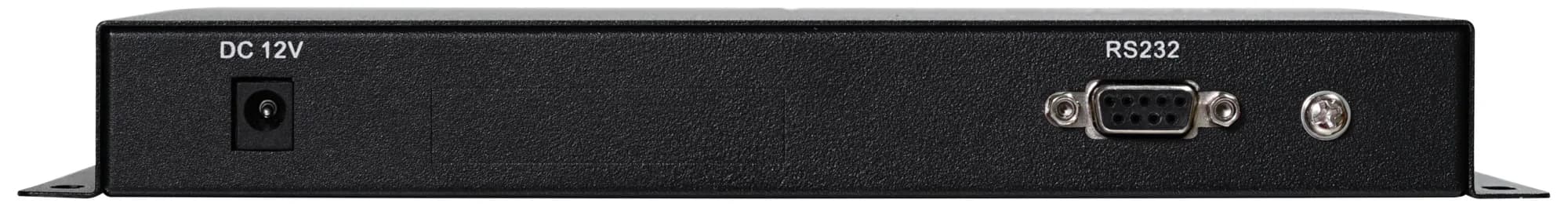

Rear panel
System Wiring

How signals flow

The complete signal path — sources, processing and displays.

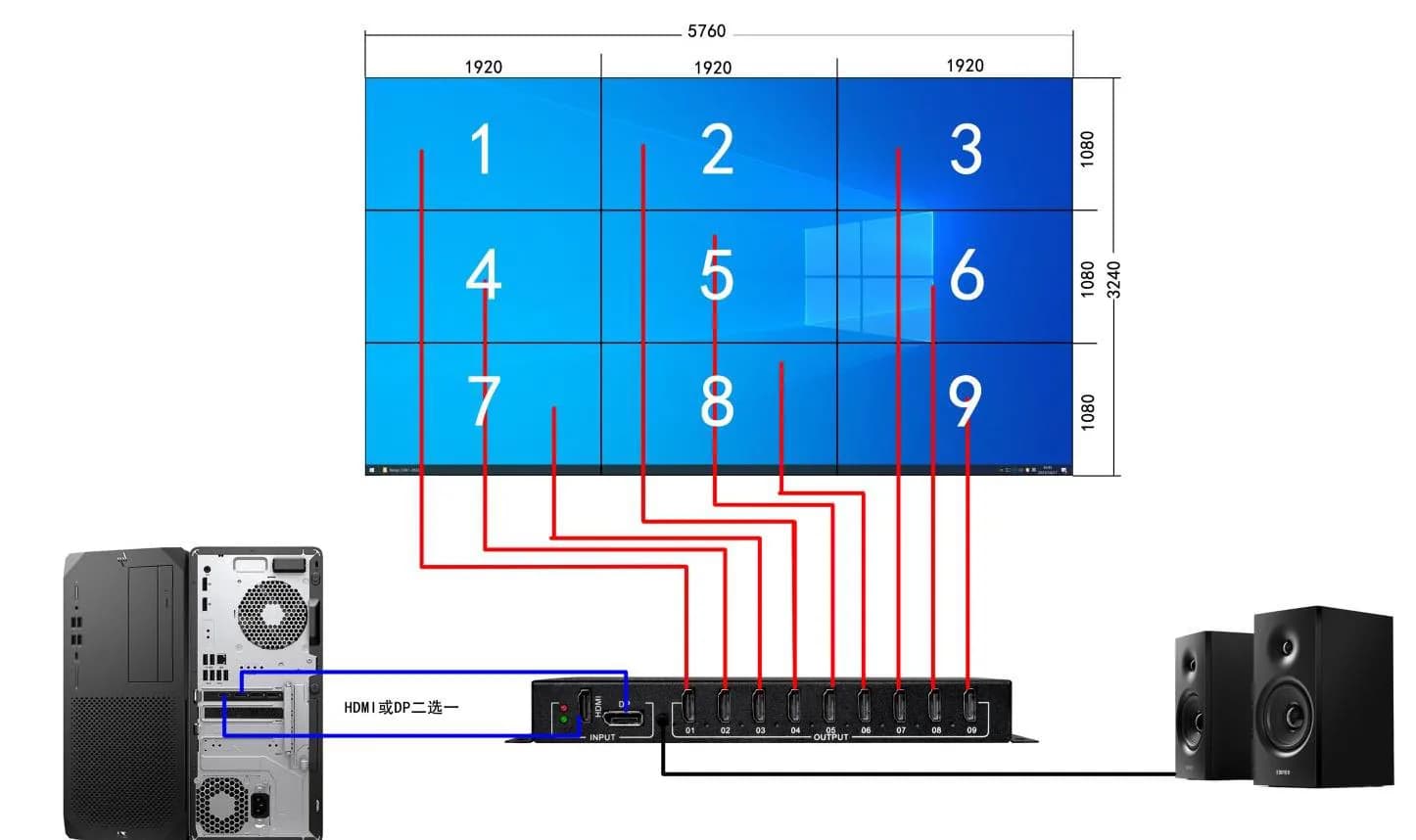

m09 system wiring diagram

Wiring diagram

Specifications

M09 9-Port Ultra-HD Multi-Screen Controller — key specifications

Input
1 × DP 1.2 / HDMI 2.0
Outputs
9 × HDMI 1.4
Layouts
3×3 (3840×2160@60) · 3×3 high-pixel (5760×3240@30) · 2×3 (5760×2160@30) · 2×4 (7680×2160@30) · 1×5 (6400×720@30) · 1×6 (7680×720@30) · 1×7 (6400×540@30) · 1×8 (7680×540@30) · 3×2 / 4×2 / 5×1–9×1 and more
Control
RS232 ×1
Audio
3.5 mm (optional)
Power
DC 12V 2A
Dimensions
240 × 160 × 28 mm
Weight
1 kg

Fixed configuration

Fixed 9-port controller — one source to 9 screens.
