VEXWALL

M06 6-Port Ultra-HD Multi-Screen Controller

Split one ultra-high-resolution canvas across 6 HDMI displays in 1×5, 1×6, 2×3, 3×2, 5×1 or 6×1 layouts from a single DP 1.2 / HDMI 2.0 input.

Request a QuoteCompare Series
VEXWALL M06 6-Port Ultra-HD Multi-Screen Controller — product view

Multi-Screen Controllers · M06 6-Port Ultra-HD Multi-Screen Controller

Interface & Specs

Every port, clearly mapped

Complete interface configuration for this model — input, output, control and power. An engineer confirms the exact configuration before any quote.

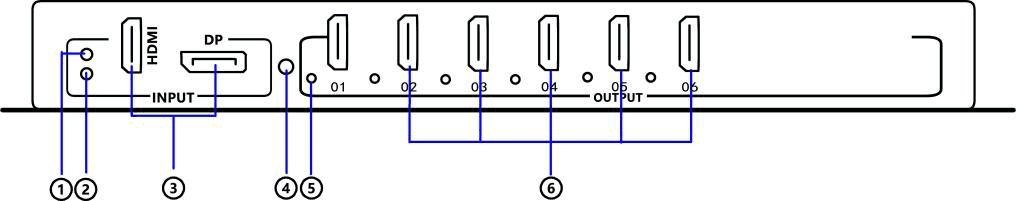

m06 interface diagram

Interface diagram

Input
1DP 1.2
Shared with HDMI (either/or)
1HDMI 2.0
Shared with DP (either/or)
Outputs
6HDMI 1.4
Control
1RS232
Audio
13.5mm audio output
Optional
Capability Matrix

Every layout, real resolutions

Published values — no rounded numbers, no invented modes.

Horizontal layouts
1x5
6400×720@30Hz
1x6
7680×720@30Hz
2x3
5760×2160@30Hz
Vertical layouts
5x1
1920×5400@30Hz
6x1
1920×6480@30Hz
3x2
3840×3240@30Hz
Real Hardware

Real hardware, front and back

Actual front and rear panels of this exact model.

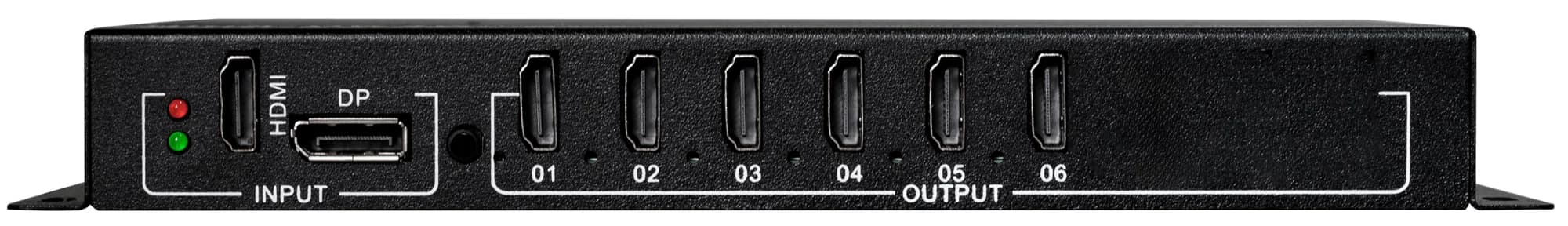

m06 hardware photo — M06-p5-i00
Front panel

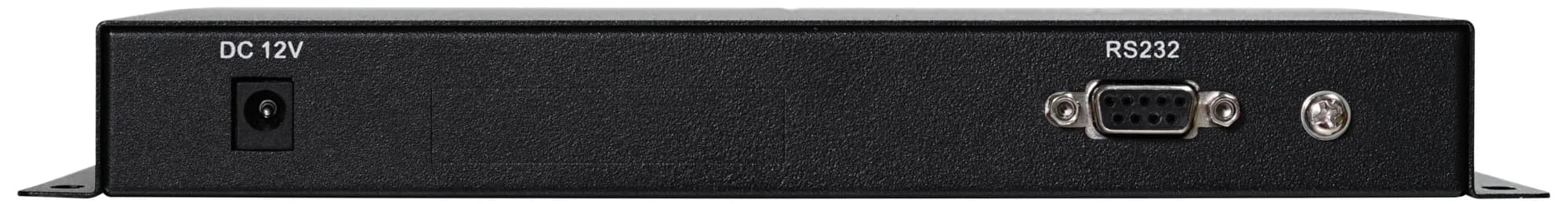

m06 hardware photo — M06-p5-i01
Rear panel
System Wiring

How signals flow

The complete signal path — sources, processing and displays.

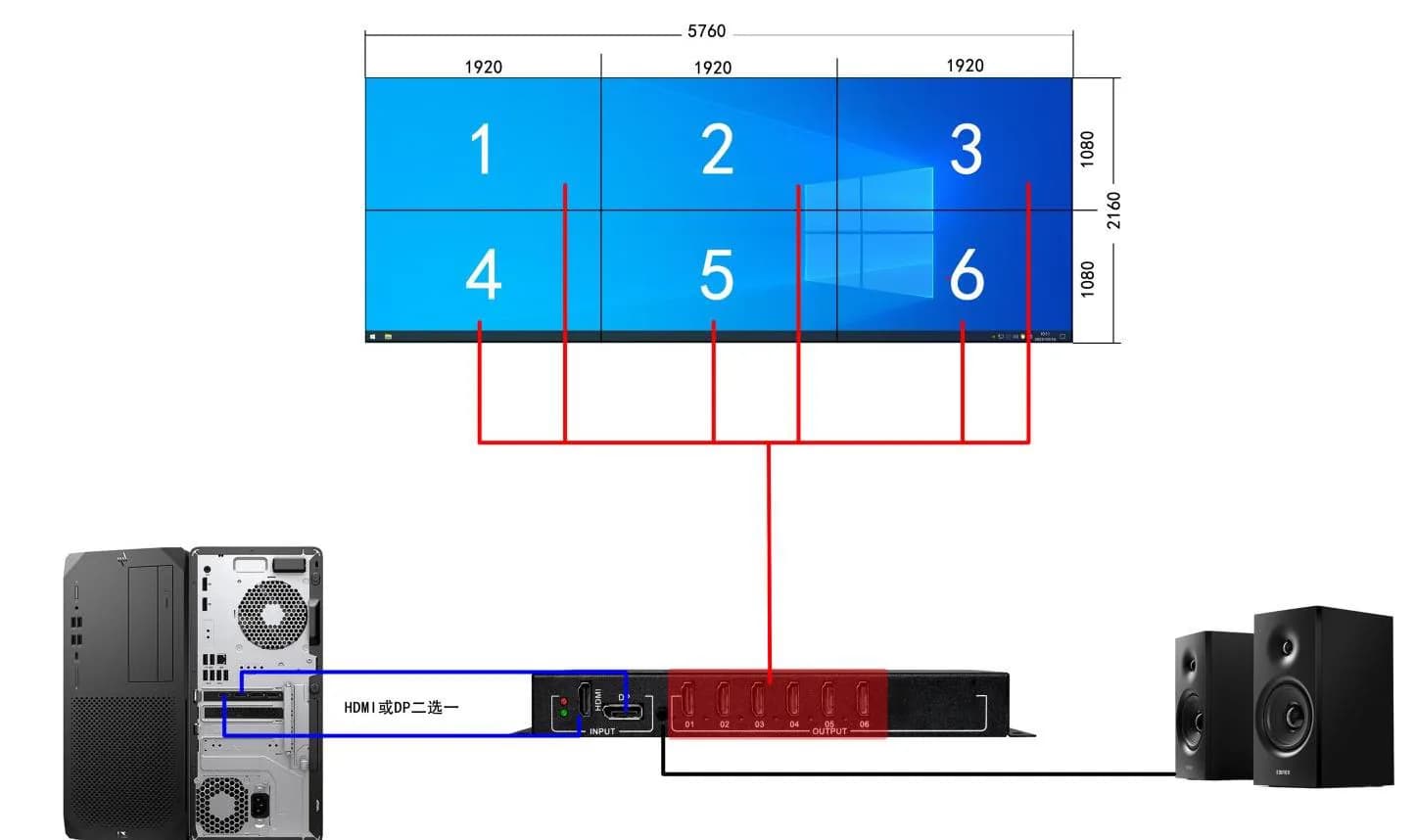

m06 system wiring diagram

Wiring diagram

Specifications

M06 6-Port Ultra-HD Multi-Screen Controller — key specifications

Input
1 × DP 1.2 / HDMI 2.0
Outputs
6 × HDMI 1.4
Layouts
1×5 (6400×720@30) · 1×6 (7680×720@30) · 2×3 (5760×2160@30) · 5×1 (1920×5400@30) · 6×1 (1920×6480@30) · 3×2 (3840×3240@30)
Control
RS232 ×1
Audio
3.5 mm (optional)
Power
DC 12V 2A
Dimensions
240 × 160 × 28 mm
Weight
1 kg

Fixed configuration

Fixed 6-port controller — one source to 6 HDMI displays.
